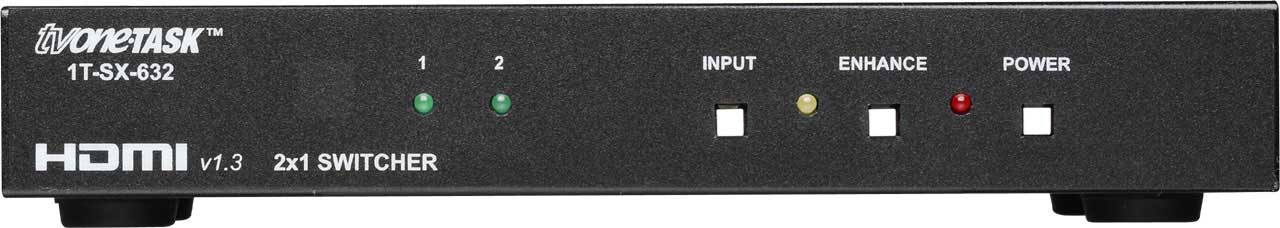

TV One 1T-SX-632
2x1 HDMI Routing Switchers, v1.3

OUR PART #  1T-SX-632

Our Price: $135.00
In Stock

The 1T-SX-632 Routing Switcher is Version 1.3 compliant. The 1T-SX-632 switches between two inputs. It maintains the signal components present within the encoded signal and allow the user to easily select program material without plugging and unplugging cables. Embedded audio, including Dolby® Digital TrueHD and DTS-HD is supported.

HDTV resolutions of 480p, 576p, 720p, 1080i and 1080p are supported, plus SDTV resolutions of 480i and 576i and PC resolutions up to 1920x1200. The units are fully DVI compatible. The switchers can be controlled via the front panel or with the included Infrared Remote Control. RS-232 control is provided as a standard feature.

Provisions are made for securing locking type HDMI cables. The units are housed in rugged metal cases and optional Single/Dual Rackmount Kits are available. They are 5VDC powered and a Power Adapter is included. The DC power connector is a locking type for security. For best performance at long distances, premium grade cables are recommended.

Features:

  • Switches two or four HDMI Sources
  • Supports HDTV resolutions up to 1080p
  • Supports SDTV 480i, 576i resolutions
  • Supports PC resolutions up to 1920x1200
  • HDMI v1.3, HDCP v1.1, DVI v1.0 Compliant
  • 3D Compatible
  • Built in Enhancer for long cable runs
  • Supports 10/12 bit Color Depth Displays
  • Supports DDWG Standard for HDMI Monitors
  • Supports embedded audio, including Dolby® Digital TrueHD and DTS-HD
  • Controllable via Front Panel or Included IR Remote
  • RS-232 Control Port Provided
  • Single/Dual Rackmount Kit optional
  • Locking DC Power Connector for Security

Specifications:

  • Video Inputs
    1T-DA-632
    2x HDMI via Type A Connectors
  • Video Output
    1x HDMI via Type A Connector
  • Video Specifications
    SDTV Resolutions 480i, 576i
    HDTV Resolutions 480p, 576p, 720p, 1080i, 1080p
    PC/DVI Resolutions Up to 1920x1200
    Bandwidth 2.25GHz
    Color Dept 10/12 bit
    Compliance HDMI V1.3, HDCP V1.1, DVI V1.0
    Signal Enhancement Switchable On/Off
  • Audio Specifications
    Embedded per HDMI v1.3 standard
    HD-Audio including Dolby® TrueHD, DTS-HD
  • Maximum Cable Lengths
    Source to Switch Input Up to 15m (45’)
    Switch Output to Display Up to 15m (45’)
  • Mechanical
    Size (H-W-D) 30x200x89mm (1.2”x7.9x3.5”)
    Weight (Net) 0.85 kg (1.9 lbs)
  • Environmental
    Operating Temperature 0° to +50°C (+32° to 122° C)
    Operating Humidity 10% to 90%, Non-Condensing
    Storage Temperature 0° to +70°C (+32° to 158° C)
    Storage Humidity 10% to 90%, Non-Condensing
  • Remote Control
    Serial Interface RS-232 via DB-9
    Infrared IR Remote Included
  • Power Requirement
    External Power Supply 5VDC @ 2A – Locking DC
  • Regulatory Approvals
    Converter Unit FCC, CE, RoHS, HDMI ATC
    Power Supply UL, CUL, CE, PSE, GS, RoHS
  • Accessories Included
    1x Power Adapter US, UK or Euro
    Operations Manual
    IR Remote Control Unit
    Locking Cable Kit Hex adapters to accommodate locking HDMI connectors
  • Optional Accessory Rackmount Kit
    RM-230 Single/Dual
