West Penn LS25AV-500
Special Purpose A/V Cable, 500ft

OUR PART #:  LS25AV-500

The LS25AV cable is for indoor use within duct...
Learn More
Our Price: $344.53
List Price: $512.00
You save 33%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


West Penn LS25AV-500
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

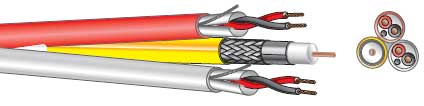

The LS25AV cable is for indoor use within duct, plenums and other spaces used for environmental air for:

  • Composite Video
  • Line Level Audio (Left and Right)


Consists of:

2- (25291B Type)

  • 1 pair 22Awg. (7x30) Bare Copper
  • Insulation- Polymer Alloy.010 inch (.25mm)
  • 100% Aluminum Foil Shield
  • Flexible Plenum jacket type - Nom O.D. .128 inch (3.25mm)-
  • One- Red Jacket • One- White Jacket

1- (HD25825 Type) MiniMax Coaxial Cable

  • 25Awg. Solid Bare Copper
  • Gas injected foam FEP insulation .078 inch (1.98mm)
  • 100% Aluminum Foil Shield + 95% Tinned Copper Braid
  • Flexible Plenum jacket type - Nom. O.D. .146 inch (3.71mm)
  • Yellow
