Telefunken Elektroakustik ELA M 260 Stereo Set
Matched Pair Small Diaphragm Tube Condenser Microphones with Interchangeable Capsules


Our Price: $2,895.00
List Price: $3,275.00
You save 12%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TELEFUNKEN Elektroakustik ELA M 260 has become a staple for use in a multitude of recording applications due to its natural presence and high level of detail and clarity, especially in acoustic and classical applications. Keeping this in mind, TELEFUNKEN Elektroakustik is now offering the ELA M 260 Stereo Set.

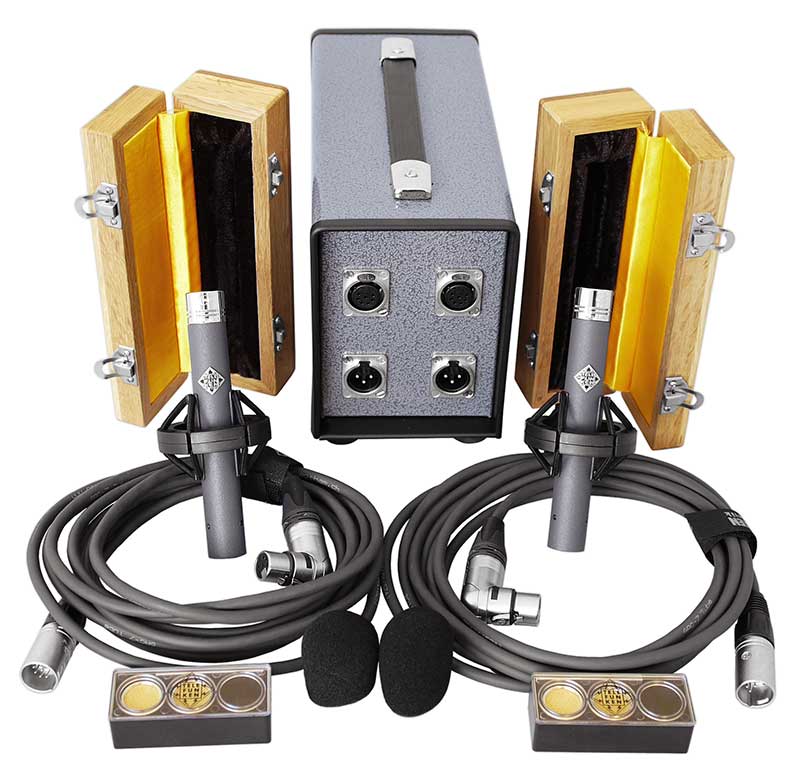

The matched Stereo Set comes in a custom locking flight case that carries both M801 cables, M761 shock mounts, microphones, wooden boxes, and an American-made dual-channel M960S power supply unit. This newly designed power supply is fully regulated and will power one or both microphones simultaneously, and features a slow-ramping heater voltage to ensure vacuum tube longevity. The ELA M 260 Stereo Set also features two sets of 3 interchangeable capsules: the TK60 cardioid, TK61 omni, and TK62 hypercardioid, so the user can have the flexibility to record their source material in any way they wish.

The microphones will also feature the same flint gray finish made popular by the R-F-T AR-51, so you will be able to know in an instant, which microphones are from your Stereo Set, and which are your individual ELA M 260 systems.

The ELA M 260 features an amplifier circuit based around a New Old Stock (NOS) EF-732 / 5840W vacuum tube and a custom output transformer that is wound to exacting specification in the United States. Each of these components is rigorously tested in our laboratory prior to installation, and hand-selected for matched pairs. The capsules have matched frequency responses, the tubes have matched gain and noise specs, and the amplifier circuits have matched gain and frequency response.

Stereo recording techniques include X/Y coincidental pairs with the microphones in cardioid, and A/B spaced pairs with either cardioid or omni-directional patterns. Using these techniques, or others, in conjunction with a pair of ELA M 260’s will result in an ideal recording set up for string sections, acoustic guitar, drum overheads, or as room microphones.

The ELA M 260 Stereo Set offers the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.


  • Two (2) Sets of 3 Interchangeable Capsules:
    • TK60 Cardioid Capsule
    • TK61 Omnidirectional Capsule
    • TK62 Hyper-Cardioid Capsule
  • M960S Dual-Channel Power Supply
  • Two (2) M761 Shock Mounts
  • Two (2) Wooden Microphone Boxes
  • Two (2) Windscreens
  • Two (2) M810 25 ft. Accusound Dual-Shielded TX-7 Tube Microphone Cables
  • Custom Locking Flight Case

TELEFUNKEN Elektroakustik ELA M 260 Specifications:

  • Type:  Condenser Pressure Gradient
  • Capsules:  TK-60, TK-61, TK-62
  • Frequency Range:  20 Hz - 20 kHz
  • Polar Patterns:  Cardioid, Omindirectional, Hypercardioid (Changeable by switching capsules)
  • Sensitivity:  16.5 mV/pa +/- 1 dB
  • THD @ 1 kHz at 1Pa:  <0.15% Per Channel
  • Output Impedance:  <200 ohms
  • Maximum SPL:  135dB
  • S/N Ratio:  83dBA
  • Self Noise:  11dBA (Per Channel)
  • Tube Type:  EF732 / 5840W
  • Power Type:  Dedicated Power Supply
  • Dimensions:  5 1/2" (140mm) length x 13/16" (21mm) diameter
  • Weight:  4.2 oz (119g)
  • Optional Powering Alternative:  960FS Battery Supply
  • Supply Current:  <1mA (120V) 135mA (6V)
  • Connected Via:  XLR-7 (F), XLR-3 (M) output
