Yamaha STAGEPAS 600i
680 Watt All-In-One Portable PA System with 10-Channel Mixer


Our Price: $899.99
List Price: $1,249.00
You save 28%! (Low Price Guarantee)
In Stock

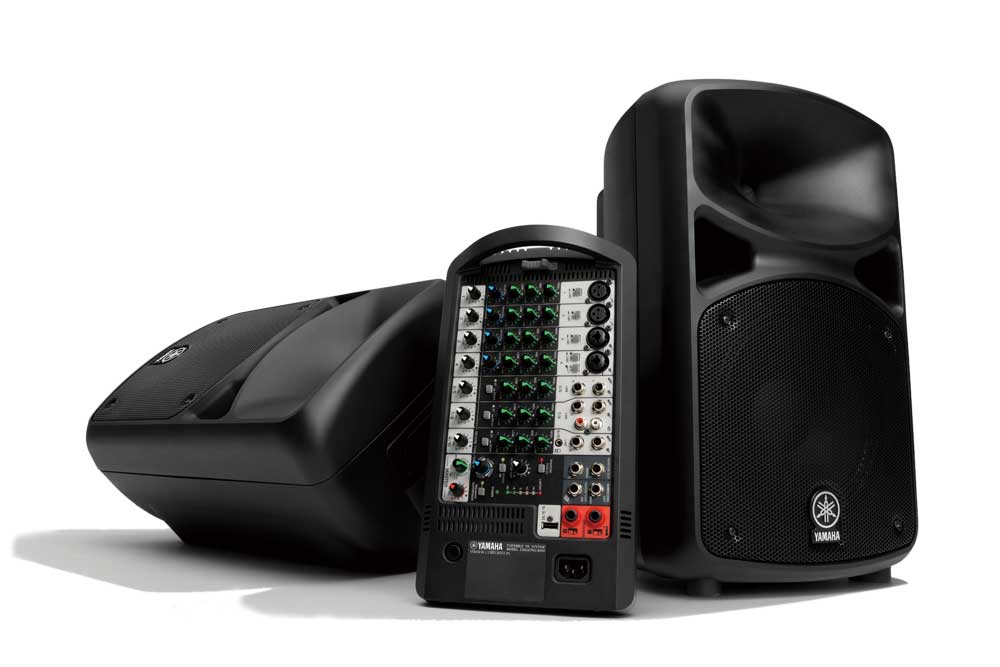

The Yamaha STAGEPAS 600i is a 680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, iPod/iPhone USB connection, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

Yamaha's STAGEPAS features two sleek, lightweight speakers and a detachable powered mixer, along with one pair of speaker cables and a power cord, giving you a complete, extremely portable sound solution that can be set up quickly and easily in a variety of configurations and environments. By combining new high-efficiency amplifiers, newly designed speakers, and high performance DSP, the new STAGEPAS delivers a significant increase in power output (400W for the 400i and 680W for the 600i) as well as substantial improvements in sound quality and reliability. Complementing the boost in performance, the addition of iPod/ iPhone connectivity, SPX digital reverbs, an onboard feedback suppressor and more versatile EQ, has improved functionality and ease of use considerably, allowing STAGEPAS to meet the demands of a much wider range of applications and users.

The Ultimate All-in-One Portable PA System
The STAGEPAS 400i and 600i are complete, all-in-one sound solutions that are extremely portable and easy to set up, allowing users to instantly add high quality sound reinforcement to virtually any environment.

New Mixer Features for a Streamlined Set-up
The STAGEPAS was designed to offer high quality sound, simply and quickly to let you do what you do best. Whether you're giving a speech or playing a gig, STAGEPAS is equipped with intelligent new features that provide simple, intuitive control of optimized settings, making it easy to dial in your perfect sound in a matter of seconds.

A Flexible Mixer with Improved Functionality
Equipped with 10 channels or 8 channels respectively, the STAGEPAS 600i and 400i offer versatile connectivity, comprehensive channel functions, and seamless expandability that meet the growing demands of a wider range of applications and environments.

Higher Power Output, Higher Sound Quality, Higher Reliability
By combining new high-efficiency amplifiers, newly designed speakers and high performance DSP, the STAGEPAS delivers a significant increase in power output, with substantial improvements in sound quality and reliability.

Yamaha STAGEPAS 600i Includes:

  • Cover panel
  • Power cord (2m)
  • 2x Speaker cables (6m)
  • 12x Non-skid pads

Yamaha STAGEPAS 600i Features:

  • 680W (340W + 340W) power output
  • Newly designed high quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
  • Detachable 10-channel mixer (4 mono mic/line + 6 mono / 3 stereo line)
  • iPod/ iPhone USB connection
  • One-knob master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 3-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

Yamaha STAGEPAS 600i Specifications:

  • Overall System:
    • System Type: Powered mixer with 2 passive speakers
    • Maximum SPL (*Maximum SPL): 129dB SPL / speaker
    • Frequency Range (-10 dB): 55Hz - 20kHz
    • Power Consumption: 35W (Idle), 100W (1/8 Power)
    • Power Requirements: 100V - 240V 50 Hz/60Hz
    • Dimentions (W x H x D):
      • Speaker: 335 x 545 x 319mm
      • Mixer: 348 x 197 x 135mm
    • Net Weight: 25.4kg / 56 lbs. (2 x Speaker 10.8kg + Mixer 3.8kg)
  • Powered Mixer:
    • Mixing channels: 10
    • Analog inputs: 4 mono mic/line + 6 mono / 3 stereo line
    • Digital inputs: USB Audio IN: iPod/iPhone exclusive
    • Channel EQ: 3-band (HIGH Shelving: 8kHz, MID peaking: 2.5kHz, LOW Shelving: 100Hz)
    • Channel functions: Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
    • Digital effects: SPX digital reverb (4 program, parameter control)
    • Output processing: Feedback suppressor, 1-Knob Master EQ™
    • Phantom Power: +30V (CH1, 2)
    • Outputs:
      • SPEAKERS OUT (L, R)
      • SUBWOOFER OUT (MONO) with auto HPF
    • Control and others: Reverb foot switch
    • Power Rating (Dynamic): 680W (340W + 340W)
    • Power Rating (Continuous): 560W (280W + 280W)
  • Speaker:
    • Speaker Type: Two-way bass-relfex speakers
    • Transducers:
      • LF: 10” (25cm) cone
      • HF: 1.4” (3.56cm) voice coil compression driver
    • Coverage Angle (Horizontal x Vertical): 90° x 60°
    • Floor Monitor Angle: 50°
    • Handle: 1 x Top
    • Pole socket: 34.8-35.2mm pole socket with StageLok™
  • Optional Accessories:
      • Yamaha BMS10A (mic stand adaptor) for mixer mount
      • FC5 (foot switch) for reverb ON/OFF
Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
