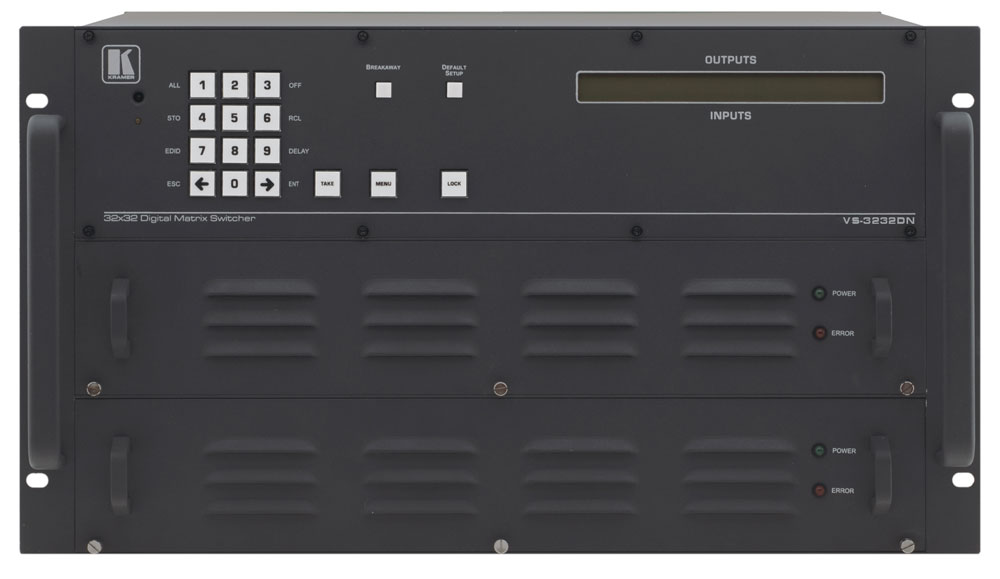

Kramer VS-3232DN
4x4 to 32x32 Modular Multi-Format Digital Matrix Switcher

OUR PART #:  VS3232DN

The VS-3232DN is a high-performance matrix switcher chassis for DVI & HDMI signals.
Learn More

Call for price! Not available online.
List Price: $8,995.00

Similar Products

The VS-3232DN is a high-performance matrix switcher chassis for DVI & HDMI signals. The unit is modular and populated from 4x4 to 32x32 in increments of four inputs and/or four outputs. The chassis includes one power supply but can also accept a second redundant power supply (sold separately), a control module and a test module that monitors and tests any input and output in the matrix.

Features:

  • Kramer Core™ - FLEXIBLE INFRASTRUCTURE CONVERSION! Copper, Fiber or Twisted Pair - all can be used at the same time, according to input/output module selection. The matrix receives digital signals from compatible Kramer transmitters, automatically converts between available infrastructure options and sends the signals to compatible Kramer receivers. Kramer Core™ solution is the ultimate in versatility!
  • Max. Data Rate - Up to 10.4Gbps (3.2Gbps per graphics channel).
  • HDTV Compatible.
  • HDCP Compliant - With DVI (HDCP), HDMI & DGKat (Twisted Pair) modules.
  • DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Modular & Easily Configurable Platform - Input or output module types can be mixed and added in increments of 4 from 4x4 up to 32x32.
  • Available Modules - DVI, DVI (HDCP), DVI (Dual Link), HDMI, LC Optical & DGKat Twisted Pair.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI and HDMI systems.
  • Flexible Control Options - Front panel, IR remote, RS-232 (K-Router™ Windows®-based software is included), Ethernet.
  • Front Panel Lockout.
  • Take Button - Executes multiple switches all at once.
  • Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
  • Test Pattern Module - With 4 output resolutions for troubleshooting video problems.
  • Worldwide Power Supply - 100-240V AC, with optional Hot-Swappable redundant power supply.
  • Standard 19” Rack Mount Size - 6U. Rack “ears” included.

Specifications:

  • Inputs: 32 DVI or HDCP, 1.2Vpp on DVI Molex 24-pin (F) connectors; DDC signal 5Vpp (TTL).
  • Outputs: 32 DVI or HDCP, 1.2Vpp on DVI Molex 24-pin (F) connectors; DDC signal 5Vpp (TTL).
  • Max. Output Level: Up to 10.4Gbps (3.2Gbps per graphics channel).
  • Compliance with HDMI Standards: Supports DVI 1.0.
  • Max. Resolution: Up to UXGA; 1080p, 1920x1200.
  • Controls: Front panel buttons, infrared remote control transmitter, RS-232, Ethernet.
  • Switching: Confirm or At Once for immediate switching.
  • Power Consumpion: 100-240V AC, 50/60Hz, 320VA with optional Hot-Swappable redundant power supply
  • Dimensions: 19" x 15" x 6U (W, D, H) rack-mountable.
  • Weight: 25.4 lbs. (11.5 kg) approx.
  • Accessories: Power cord, null-modem adapter, infrared remote control transmitter.
