Elation Level Q7 IP 7x15W RGBW LED IP65 Par Can

OUR PART #: LEVEL-Q7-IP MFR #: LEV066

Copied to clipboard

The Elation Lighting IP65 rated Level Q7 IP™ features (7) 15W QUAD color RGBW LEDs, 7° beam and 13° field angles, color correction (2,700K - 7,200K)... ...Read more

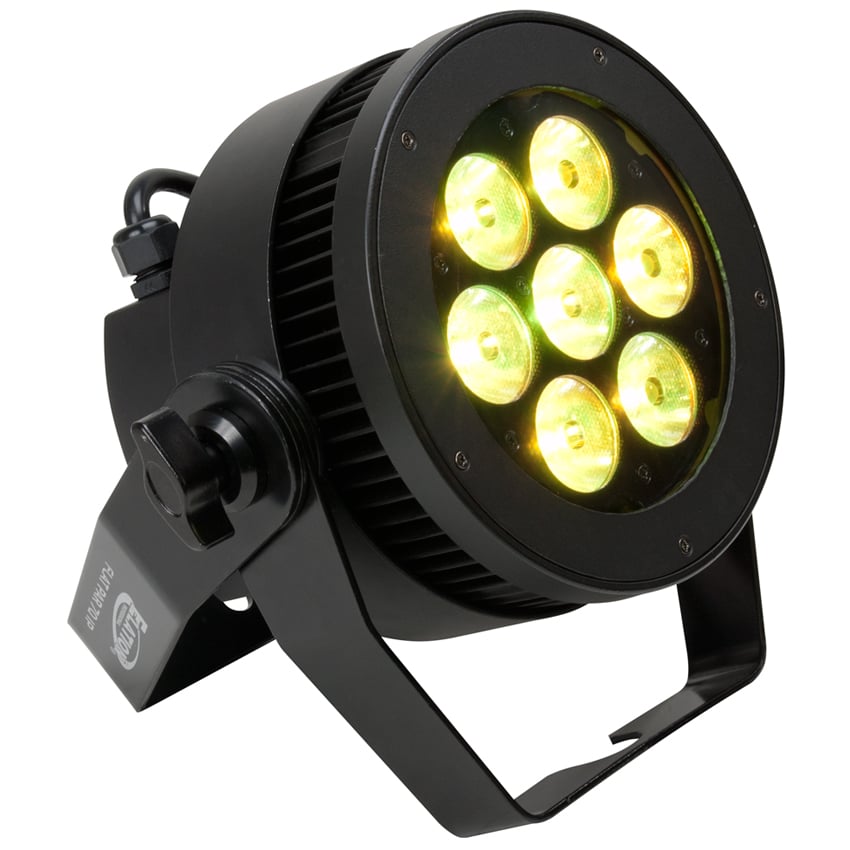

Elation Level Q7 IP 7x15W RGBW LED IP65 Par Can Image 1
Elation Level Q7 IP 7x15W RGBW LED IP65 Par Can Image 2
Elation Level Q7 IP 7x15W RGBW LED IP65 Par Can
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Elation Lighting IP65 rated Level Q7 IP™ features (7) 15W QUAD color RGBW LEDs, 7° beam and 13° field angles, color correction (2,700K - 7,200K), electronic strobe (1-18 fps) and dimming (0-100%), flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base with dual yoke / floor stand, multiple unit power linking, 127W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).

Elation Pro Lighting Level Q7 IP Includes:

  • Level Q7 IP
  • IP Power Cable
  • IP 3-pin DMX Cable
  • Safety Cable

Elation Lighting Level Q7 IP Features:

  • IP65 Rated
  • 7° Beam 13° Field Angles
  • 2,700K - 7,200K Color Correction
  • Flicker Free Operation for TV and FILM
  • Rugged Die-Cast Aluminum Exterior
  • Rubber Padded Base with Dual Yoke / Floor Stand
  • Multiple Unit Power Linking

Elation Lighting Level Q7 IP Specifications:

  • Source:
    • Seven 15W QUAD Color RGBW LEDs
    • 100,000 Hour Average Life
  • Photmetric Data: 3636 LUX 388 FC @16.4 ft (5M)
  • Effects:
    • Electronic Strobe and Varying Settings
    • Color and Chase Macros
    • Electronic Dimming: 0% - 100%
  • Controls / Connections:
    • Five DMX Channel Modes (4 / 5 / 7 / 12 / 17)
    • Four Button Control Panel
    • LCD Menu Display
    • IP 3-pin DMX In/Out
    • IP 3-pin Power In/Out
  • Dimensions (LxWxH): 11.l" x 5.5" x 10.2" (287.6 x140.5 x 260 mm)
  • Weight: 9 lbs (4 kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 127W Max Power Consumption
    • Multiple Unit Power Linking
    • -13°F to 113°F (-25°C to 45°C)
  • Approvals / Ratings:
    • CE Approved
    • cETLus Approved
    • IP65 Rated
  • Installation:
    • Rigging: Integrated Dual Yoke / Floor Stand
    • Working Position: Any (360°)
