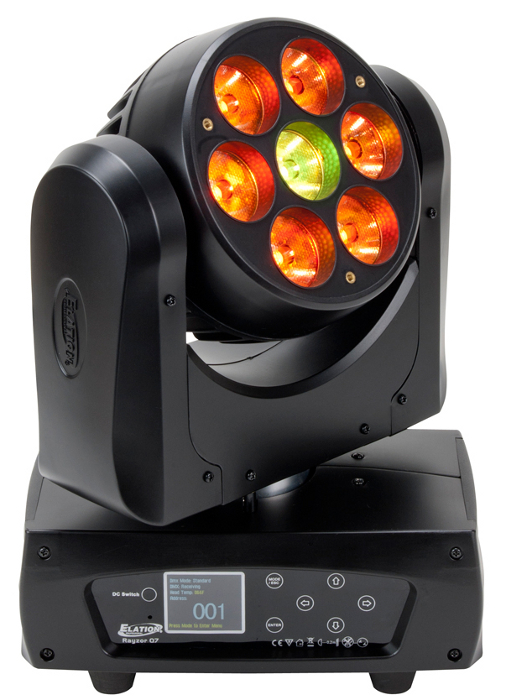

Elation Pro Lighting Rayzor Q7
7x 15W Moving Head LED Fixture


Elation's Rayzor Q7 is the smallest, fastest and most powerful moving head LED wash / beam in its class.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

Elation's Rayzor Q7 is the smallest, fastest and most powerful moving head LED wash / beam in its class. Featuring Quad Color LED’s and High Output Optical technology, Rayzor Q7 produces a Rayzor sharp beam with a 7 degree beam angle lens system, has Rayzor fast movement with new high speed 3-phase motor technology. Utilizing 7 x 15 Watt Osram Quad Color RGBW LED’s which can also be controlled and chased in 4 independent zones for dynamic visual effects.

Optional accessories for the Rayzor Q7 include a snoot lens cover and diffusion filter holder. The Rayzor Q7 features a full color LCD touch menu display, powercon in/out linking, multivoltage power supply from 100-240v and 5pin DMX as standard. The Rayzor Q7 is CE approved and cETLus approval is pending.

Elation Rayzor Q7 Features:

  • 7x 15W Quad Color RGBW LEDs
  • 50,000 hour long life LED
  • 7° beam angle
  • 13° field angle
  • 5,442 Lux @ 4M
  • Strobe 1-18fps
  • Dimming: 0-100%
  • 4 zone chase effects
  • 8 macros
  • 15/17/28 DMX channels
  • 5pin in/out DMX connectors
  • Power con in/out
  • Full color LCD display
  • 540 / 630 x 265 Pan / Tilt
  • 100-240v / 50-60hz power input
  • ST 250V 5A fuse
  • 45°C max ambient temp
  • 130W max power
  • Flicker Free
  • RDMX
  • Color LED touch display
  • Black Case Color
  • Single Omega bracket mounting
  • Electrical Approvals: CE and cETLus PENDING
  • Optional accessories: Snoot / Diffusion Filter holder
  • Weight: 11 lbs
  • Dimensions: 9.25” x 5.5” x 12.5”
