Blizzard Blade RGBW 36x5W RGBW Moving Head Beam Fixture

OUR PART #: BLADE-RGBW MFR #: 123463

Copied to clipboard

The Blade™ RGBW moving head light from Blizzard Lighting is a cut above as it combines blinding output ... Read more

Blizzard Blade RGBW 36x5W RGBW Moving Head Beam Fixture Image 1
Blizzard Blade RGBW 36x5W RGBW Moving Head Beam Fixture Image 2
Blizzard Blade RGBW 36x5W RGBW Moving Head Beam Fixture
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

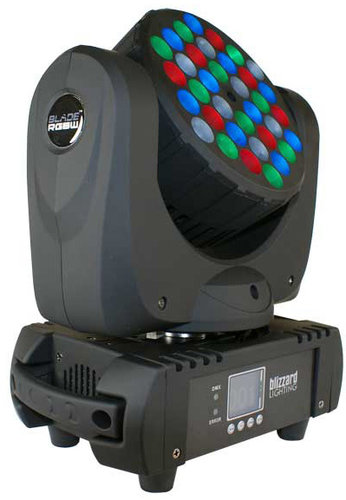

The Blade™ RGBW moving head light from Blizzard Lighting is a cut above as it combines blinding output, surgical precision and a razor-sharp 1.1 degree beam to dazzle your audience. Using 36 5-Watt CREE® Red/Green/Blue/White LEDs and coupled with their 1.1 degree beam angle optic system, the Blade™ RGBW is a remarkable aerial performer packed in a tiny, lightweight package. And thanks to advanced motor technology and innovative design, the Blade™ is the fastest, most accurate moving head Blizzard has ever offered.

Programming the Blade™ is a snap and easy on the eyes, too, thanks to its full-color LCD-TFT display with icon-based navigation. Plus, the fixture has plenty of extra features usually only found on fixtures with a much higher price tag.

PowerCON™ compatible power in and out connectors make for secure power connections, user selectable 16-bit dimming, defeatable pan/tilt correction with trim adjustment, auto standby after DMX signal loss and fixture ID addressing are all included. Finally the Blade™ RGBW easily converts from a dazzling beam fixture to a versatile 8.8° soft-edged wash fixture by attaching the included diffuser lens. It's like having two fixtures in one.

Features

  • 36x 5-watt R/G/B/W CREE® LEDs
  • User selectable 11 or 15 DMX channels
  • Razor-sharp 1.1° beam angle + attachable 8° diffuser lens
  • 4-button menu with LCD-TFT icon-based display
  • Full color mixing in standalone, primary/secondary and DMX modes
  • Built-in automated programs via primary/secondary
  • Built-in sound activated programs via primary/secondary
  • User selectable 16-bit dimming
  • Defeatable pan/tilt correction with trim adjustment
  • Auto standby after DMX signal loss
  • Fixture ID addressing
  • 3-pin male input and 3-pin female output
  • PowerCon™ compatible AC power In/Out connectors
  • Compact, high quality housing

Specifications

  • Optical:
    • Light source: 36x 5-watt R/G/B/W CREE® LEDs
    • Beam Angle: 1.1° (8° with diffuser lens)
  • Movement:
    • Pan: 540º (8-16 Bit Resolution)
    • Tilt: 240º (8-16 Bit Resolution)
  • Weight & Dimensions:
    • Length: 13.4 inches (34 cm)
    • Width: 9.5 inches (24 cm)
    • Height: 14.8 inches (37.5 cm)
    • Weight: 11.5 lbs (5.2 kg)
  • Control:
    • Protocol: USITT DMX-512
    • DMX Channels: 11 or 15 Channels
    • Input: 3-pin XLR Male
    • Output: 3-pin XLR Female
    • Operating Modes: Standalone, Primary/Secondary, Sound Active, Color Preset
  • Power & Current:
    • Operating Voltage: AC 120VAC, 60 Hertz
    • Power Consumption: 148W, 1.84A (full white)
  • Warranty:
    • 2-year limited warranty, does not cover malfunction caused by damage to LEDs

Notes

The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.
