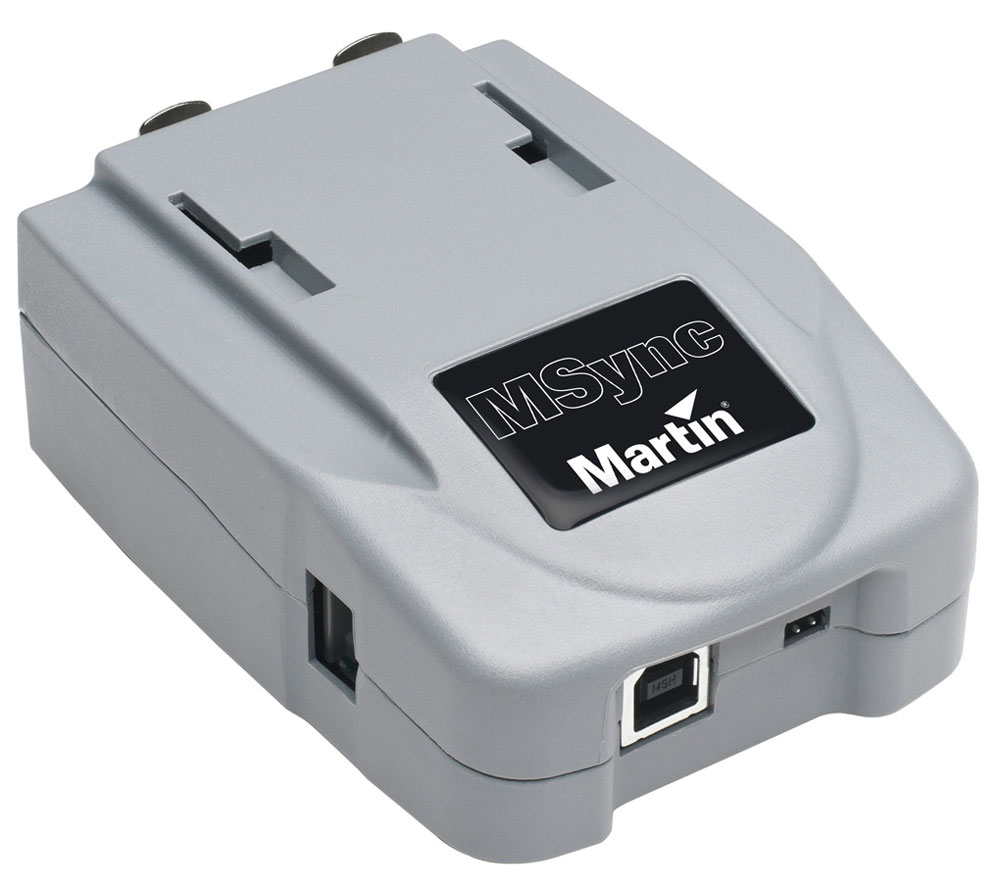

Elation M-Sync USB To SMPTE Timecode Interface For M-Series Consoles Image 1
Elation M-Sync USB To SMPTE Timecode Interface For M-Series Consoles
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Elation M-Sync™ is a simple USB device that allows SMPTE timecode to be input directly into any M-Series™ console - M1, M2GO, M2PC, M-PC or Cerebrum.

The M-Sync USB device has two 3-pin XLR connectors for timecode In/Out supporting LTC timecode @ 24, 25, 29.97 and 30 frames per second. It can be connected to any USB port on a PC or M-Series console.

M-Sync allows the M-Series software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.

Elation Professional M-Sync Features:

  • Plug and play solution - comes complete with USB cable
  • Two 3-pin XLR connectors for timecode In/Out
  • Convenient, space-saving, stackable design
  • Easily mounts to surfaces and walls
  • LTC timecode @ 24, 25, 29.97 and 30 frames per second
  • Works with M-Series software on consoles or with M-PC
  • Internal version for M2GO and M2PC also available

Elation Professional M-Sync Specifications:

  • Length: 4.1" (103 mm)
  • Width: 2.9" (73 mm)
  • Height: 1.7" (42 mm)
  • Weight: 4.1 oz (116 g)
  • Configuration and management: Within Elation M-Series application
  • Timecode Compliance: SMPTE (LTC)
  • Timecode Frame rates: 24, 25, 29.97 and 30 frame/sec.
  • Timecode In/Out: 2 x 3-pin locking XLR, 1 x male, 1 x female
  • PC/controller: USB
  • USB-powered
  • Included Items: 9.8 ft (3 m) USB cable
  • Ordering Information: Elation M-Sync SMPTE USB InterfaceBox P/N 90703020
