Product Overview

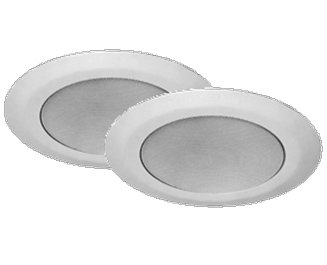

The Advanced Network Devices IPSCM-RM is a round ceiling speaker. It has two 8" speakers and includes the sound masking feature.
This is a pair of speakers: one is an IP speaker and one is a standard Analog speaker run off of the IP board on speaker one. This is a cost-effective model, but requires the system to address both at once.
Features:
- Sound masking technology
- Easy installation requiring only a CAT 5 cable
- Field-upgradable built-in web server
- Sound Masking: Generate pink noise via optional push-button IPBTN-V or programmatically for sound masking
- Built-in Web Server:
- Configurable volume
- Device Status
- Field-upgradable
- Line In/Out:
- Independent line-in
- Can be configured to send line in audio to the speaker and/or broadcast to additional speakers
- Easy Installation:
- Only requires CAT 5 connection (up to 300 ft) to network
- Power over Ethernet (no power cord or adapter). No other equipment needed
- GPIO:
- 2 inputs, 1 output
- Activate via telephone or programmatically
- Multicast: Full multicast and broadcast support. Send audio and/or scrolling text to individual devices, all devices or groups of devices.
- Compatible with most major IP-based software and many PBX systems (NOT compatible with Singlewire)
Specifications:
- Supported Protocols:
- SIP
- IPv4
- HTTP
- SLP
- TFTP
- NTP
- DHCP
- IGMP
- ICMP
- TCP/IP
- UDP
- MDNS & MDNS-SD
- Speaker Size: 8"
- Average Sensitivity: 95dB SPL, 1W/1M
- PoE Power: 10 W
- Frequency Response: 60 Hz - 17 kHz (EIA 462A Standard)
- Weight: 4 lbs
- Dimensions: Approx: 10.5" diameter
- PoE (IEEE802.3af)
- PoE+ (IEEE802.3at)
- 10/100 Mb network connection
