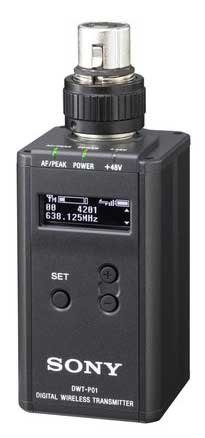

Sony DWTP01/E3040
Digital Wireless Plug-on Transmitter

OUR PART #  DWTP01/E3040

Our Price: $1,334.24
List Price: $2,059.00
You save 35%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The DWT-P01/E3040 digital plug-on transmitter operates within a 66 MHz range, from 566 to 607 MHz, and from 615 to 638 MHz. Audio input is selectable from either mic or line level. The DWT-P01/E provides a choice of 1, 10 or 50 mW RF output. The transmitter operates for approximately 5 hours using two AA size alkaline batteries at 10 mW output power. The DWT-P01/E supports use of alkaline, lithium, or nickel-metal hydride batteries. Transmitter functions; including input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode (in the transmitter) can be remotely controlled from the digital wireless receiver. The DWT-P01/E also includes 48V phantom powering.

Features:

  • Supports mic or line input
  • Audio and metadata transmission operates on UHF-TV channels 30-40 (566 MHz to 607 MHz and from 615 MHz to 638 MHz)
  • Transmitter settings can be remotely controlled from the digital wireless receiver (using 2.4 GHz IEEE802.15.4 communication technology)
  • Compact, lightweight and built with a sturdy die-cast magnesium body
  • 5 hr battery life using two AA alkaline batteries @ 10 mW power setting

Specifications:

  • Battery Life  Approximately 5 hr at 10 mW output using alkaline batteries
  • Compatibility  For use with DWX Series wireless products operating on the same frequencies
  • Dimensions  1 3/4" x 1 3/4" x 4 1/2"
  • Power Requirements  DC 3.0V, (two AA size batteries)
  • Weight  9 oz (including batteries)

Plug On Transmitter Specifications:

  • Audio Input Connector  XLR-3, female
  • Audio Input Level  Max. -22 dBu (with 0 dB attenuator) Mic; +24dBu Line
  • Carrier Frequencies  566 to 607 MHz (TV channels 30 to 36) and 615 to 638 MHz (TV channels 38 to 41)
  • Oscillator  Crystal controlled PLL synthesizer
  • RF Power Output  1 mW / 10 mW / 50 mW
  • Type Of Emission  G1E or G1D

Sony DWTP01/E3040
Digital Wireless Plug-on Transmitter

OUR PART #  DWTP01/E3040

Product Information:

The DWT-P01/E3040 digital plug-on transmitter operates within a 66 MHz range, from 566 to 607 MHz, and from 615 to 638 MHz. Audio input is selectable from either mic or line level. The DWT-P01/E provides a choice of 1, 10 or 50 mW RF output. The transmitter operates for approximately 5 hours using two AA size alkaline batteries at 10 mW output power. The DWT-P01/E supports use of alkaline, lithium, or nickel-metal hydride batteries. Transmitter functions; including input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode (in the transmitter) can be remotely controlled from the digital wireless receiver. The DWT-P01/E also includes 48V phantom powering.

Features:

  • Supports mic or line input
  • Audio and metadata transmission operates on UHF-TV channels 30-40 (566 MHz to 607 MHz and from 615 MHz to 638 MHz)
  • Transmitter settings can be remotely controlled from the digital wireless receiver (using 2.4 GHz IEEE802.15.4 communication technology)
  • Compact, lightweight and built with a sturdy die-cast magnesium body
  • 5 hr battery life using two AA alkaline batteries @ 10 mW power setting

Specifications:

  • Battery Life  Approximately 5 hr at 10 mW output using alkaline batteries
  • Compatibility  For use with DWX Series wireless products operating on the same frequencies
  • Dimensions  1 3/4" x 1 3/4" x 4 1/2"
  • Power Requirements  DC 3.0V, (two AA size batteries)
  • Weight  9 oz (including batteries)

Plug On Transmitter Specifications:

  • Audio Input Connector  XLR-3, female
  • Audio Input Level  Max. -22 dBu (with 0 dB attenuator) Mic; +24dBu Line
  • Carrier Frequencies  566 to 607 MHz (TV channels 30 to 36) and 615 to 638 MHz (TV channels 38 to 41)
  • Oscillator  Crystal controlled PLL synthesizer
  • RF Power Output  1 mW / 10 mW / 50 mW
  • Type Of Emission  G1E or G1D
