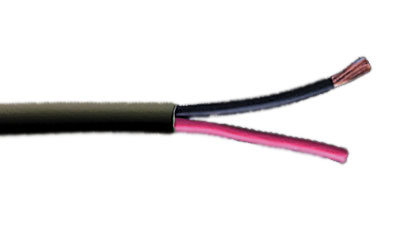

Liberty AV Solutions 16-2C-TTP-BLK
Black Tight Tube Plenum 16 AWG 2 Conductor Speaker Cable

OUR PART #:  16-2C-TTP-BLK

Tight Tube Plenum 16 AWG 2 conductor Speaker cable features higher strand counts and a rounder, smoother diameter for ease of install.
Learn More
Our Price: $351.00
List Price: $390.00
You save 10%!
Write the first review.
Liberty AV Solutions 16-2C-TTP-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Tight Tube Plenum 16 AWG 2 conductor Speaker cable features higher strand counts and a rounder, smoother diameter for ease of install.

Tight Tube Plenum (TTP) Plenum Speaker Cable

Features:

  • 26-Strand Annealed Bare Copper Conductors
  • Plenum rated PVC Alloy insulation
  • Twisted, unshielded
  • Plenum rated PVC Jacket
  • NEC CMP, CEC CMP FT6 for Audio only, RoHS Compliant
  • 1000 Foot Spools

Applications:

  • Speaker Level Audio Distribution
  • 70V Speaker systems
  • DC Power, Class 2 and Class 3 power, system control

Specifications:

Summary SPEAKER Wire: 16/2 stranded twisted unshielded 300V CMP jacketed .192 OD
Print Legend LWC 16-2C-TTP E190606 16 AWG TYPE CMP C(UL)US
Conductor Count 2
Conductor Group Conductor
Conductor Total 2
Conductor Gauge 16 AWG
Strand Count 26
Strand Gauge 30 AWG
Conductor Composition BC - BARE COPPER
Conductor Diameter 0.059 Inches
Conductor Insulation Composition PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
Conductor Insulation Thickness 0.008 Inches
Conductor Insulation Diameter 0.075 Inches
Conductor Lay 3
Conductor Twist per Foot 4.00
Conductor Color Code BLACK, RED
Ripcord Present YES
Jacket Composition PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
Jacket Thickness 0.018 Inches
Overall Diameter 0.192 Inches
Jacket Colors BLACK; BLUE; WHITE
Weight 30
Bend Radius 1.92
Temperature Rating 60 Degrees Celsius
NEC Rating CMP
NEC Art 800
CEC Rating CMP
ROHS Rate Yes
ROHS Date 15-Jun-2005
Static Print LWC 16-2C-TTP
Foot Marker YES
