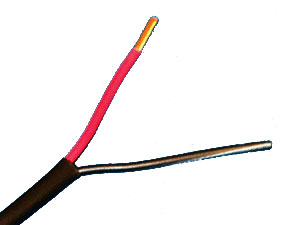

Liberty AV Solutions 14-2C-P-BLK
Black Commercial Grade 14 AWG 2 Plenum Cable

OUR PART #:  14-2C-P-BLK

Commercial grade 14 AWG 2 conductor twisted unshielded featuring a plenum rating and economical construction.
Learn More
Our Price: $499.00
List Price: $554.00
You save 10%!
Write the first review.
Liberty AV Solutions 14-2C-P-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Commercial grade 14 AWG 2 conductor twisted unshielded featuring a plenum rating and economical construction.

General Purpose Cable, Commercial Grade

Features:

  • Stranded Annealed Bare Copper Conductors
  • Plenum rated PVC Alloy insulation
  • Twisted, unshielded
  • Plenum rated PVC Jacket
  • NEC CL3P, CEC CMP FT6, RoHS Compliant
  • 1000 Foot Spools

Applications:

  • Speaker Level Audio Distribution
  • 70V Speaker systems
  • DC Power, Class 2 and Class 3 power, system control

Specifications:

Summary CONTROL Wire: 14/2 stranded twisted unshielded 300V CL3P jacketed .210 OD
Print Legend LWC 14-2C-P E190607-* 14 AWG TYPE CL3P (UL) C(UL) CMP FT6 FOR AUDIO ONLY 75°C
Conductor Count 2
Conductor Group Conductor
Conductor Total 2
Conductor Gauge 14 AWG
Strand Count 19
Strand Gauge 27 AWG
Conductor Composition BC - BARE COPPER
Conductor Diameter 0.069 Inches
Conductor Insulation Composition PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
Conductor Insulation Thickness 0.010 Inches
Conductor Insulation Diameter 0.089 Inches
Conductor Lay 3
Conductor Twist per Foot 4.00
Conductor Color Code BLACK, RED
Ripcord Present YES
Jacket Composition PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
Jacket Thickness 0.015 Inches
Overall Diameter 0.210 Inches
Jacket Colors DARK BLUE; WHITE; BLACK
Weight 40
Bend Radius 2.10
Temperature Rating 60 Degrees Celsius
NEC Rating CL3P
NEC Art 725
CEC Rating CMP FT6 FOR AUDIO ONLY
ROHS Rate Yes
ROHS Date 15-Jun-2005
Static Print LWC 14-2C-P
Foot Marker YES
