Roland Professional A/V V-40HD Multi-Format HD Video Switcher

OUR PART #: V-40HD MFR #: V-40HD

Copied to clipboard

The Roland V-40HD is equipped with four input systems (Inputs 1 - 4). ...Read more

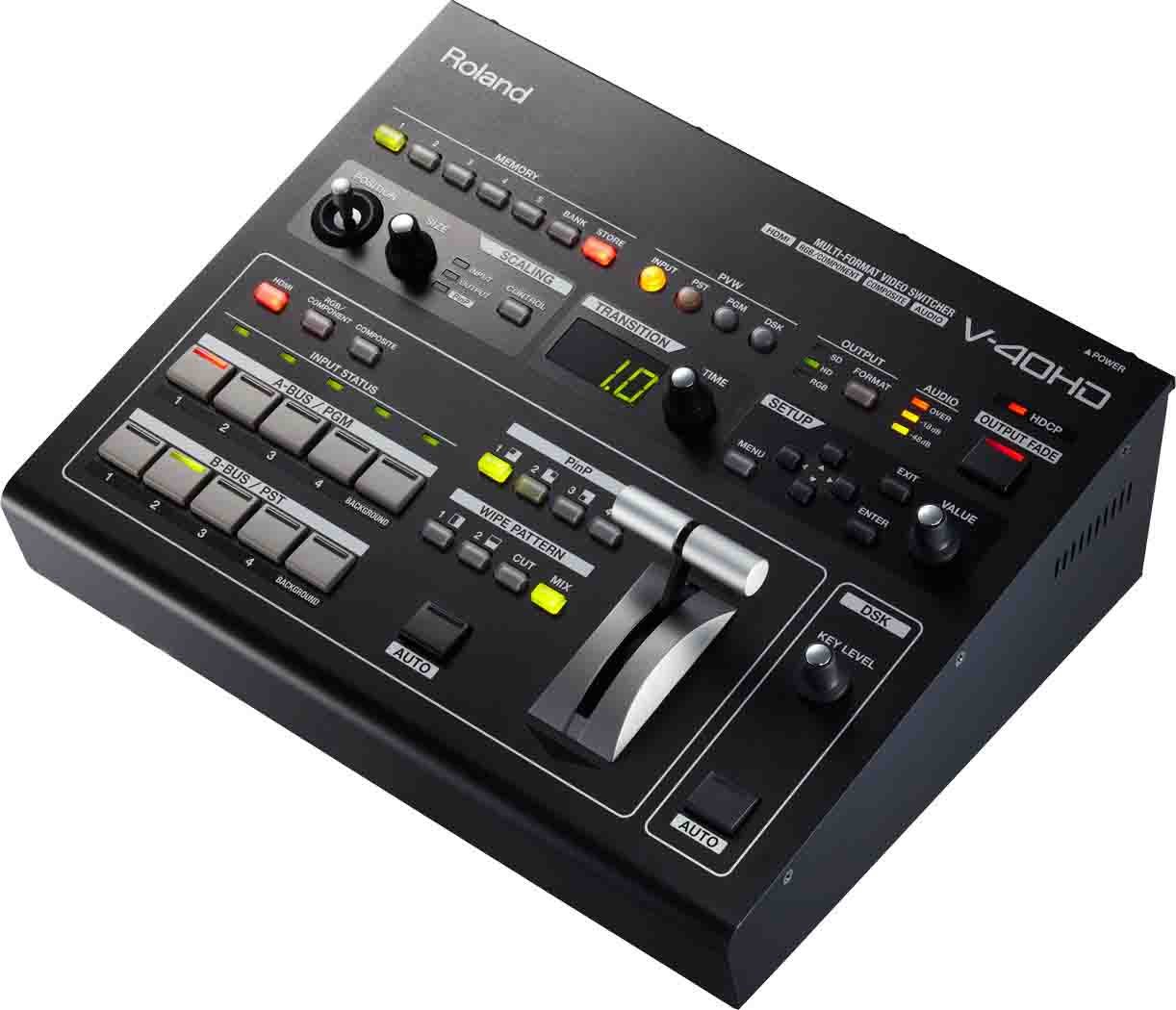

Roland Professional A/V V-40HD Multi-Format HD Video Switcher Image 1
Roland Professional A/V V-40HD Multi-Format HD Video Switcher Image 2
Roland Professional A/V V-40HD Multi-Format HD Video Switcher Image 3
A6Jg8EfcK98
1 Video
Roland Professional A/V V-40HD Multi-Format HD Video Switcher
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Roland V-40HD is equipped with four input systems (Inputs 1 - 4). Each of these systems has three types of input connectors --- HDMI, RGB/Component, and Composite --- allowing you to connect a total of twelve video devices. For output, the V-40HD provides three systems: Output 1 (HDMI/RGB/Component/Composite), Output 2 (HDMI/RGB/Component) , and Preview (HDMI).

Supports 1080p video signals - twice the rate of conventional HD and uses 4:4:4/10 - bit internal signal processing. Asserts all the vividness of high-realism, high-detail camera and computer sources.

The V-40HD features an HDCP mode that lets you input and switch commercial digital video from sources such as Blu-ray Discs or game consoles encoded using HDCP digital copyright management technology. This lets you produce video with unrestricted freedom --- for instance, compositing a video feed from a Blu-ray Disc or tablet computer against a background from a live camera. Output to a display can be made via HDMI.

Includes:

  • AC Adaptor (4 pins XLR type connector)
  • Power Cord
  • RCA-BNC conversion plug x 4
  • Owner's manual

Features:

  • 4 Channels (12 Inputs - 4 x HDMI, RGB/Component, Composite),
  • 3 Outputs (HDMI/RGB/Component/Composite+HDMI/RGB/Component + HDMI)
  • 4:4:4 / 10-bit Internal Processing (*4:2:2/8-bit Output Processing)
  • 1 M/E (PinP) + DSK
  • Built-in frame synchronizers and scalers on all inputs
  • Input status LEDs
  • Full HDCP support
  • Preview monitor output (Four-way split screen for Inputs, PST, PGM, or DSK)
  • Audio embedding
  • Audio delay to align the timing with video for perfect lip sync

Specifications:

  • Video Processing
    • Sampling rate: 4:4:4 (Y / Pb / Pr), 10-bits *Output signal processing is 4:2:2 / 8-bit.
    • Audio processing: 24-bits / 48kHz, 2ch
  • Input Formats
    • HDMI video:
      • 480 / 59.94i
      • 576 / 50i
      • 480 / 59.94p
      • 576 / 50p
      • 720 / 59.94p
      • 720 / 50p
      • 1080 / 59.94i
      • 1080 / 50i
      • 1080 / 59.94p
      • 1080 / 50p
      • 640 x 480 / 60Hz
      • 800 x 600 / 60Hz
      • 1024 x 768 / 60Hz
      • 1280 x 768 / 60Hz
      • 1280 x 1024 / 60Hz
      • 1366 x 768 / 60Hz
      • 1400 x 1050 / 60Hz
      • 1600 x 1200 / 60Hz
      • 1920 x 1080 / 60Hz
      • 1920 x 1200 / 60Hz
      • Notes: The video signal frame rate must match with the unit’s frame rate setting. Conforms to VESA DMT Version1.0 Revision 11. 1920 x 1200 / 60Hz: Reduced blanking
    • HDMI audio: Linear PCM, 24-bits / 48kHz, 2ch
    • RGB / Component:
      • 480 / 59.94i
      • 576 / 50i
      • 480 / 59.94p
      • 576 / 50p
      • 720 / 59.94p
      • 720 / 50p
      • 1080 / 59.94i
      • 1080 / 50i
      • 1080 / 59.94p
      • 1080 / 50p
      • 640 x 480 / 60Hz
      • 800 x 600 / 60Hz
      • 1024 x 768 / 60Hz
      • 1280 x 768 / 60Hz
      • 1280 x 1024 / 60Hz
      • 1366 x 768 / 60Hz
      • 1400 x 1050 / 60Hz
      • 1600 x 1200 / 60Hz
      • 1920 x 1080 / 60Hz
      • 1920 x 1200 / 60Hz
      • Notes: The video signal frame rate must match with the unit’s frame rate setting. Conforms to VESA DMT Version 1.0 Revision 11. 1920 x 1200/60Hz : Reduced blanking
    • Composite:
    • NTSC
    • PAL
  • Output Formats
    • HDMI video:
      • 480 / 59.94i
      • 576 / 50i
      • 480 / 59.94p
      • 576 / 50p
      • 720 / 59.94p
      • 720 / 50p
      • 1080 / 59.94i
      • 1080 / 50i
      • 1080 / 59.94p
      • 1080 / 50p
      • 640 x 480 / 60Hz
      • 800 x 600 / 60Hz
      • 1024 x 768 / 60Hz
      • 1280 x 768 / 60Hz
      • 1280 x 1024 / 60Hz
      • 1366 x 768 / 60Hz
      • 1400 x 1050 / 60Hz
      • 1600 x 1200 / 60Hz
      • 1920 x 1200 / 60Hz
      • Notes: The output refresh rates of 640 x 480--1400 x 1050 are 75Hz when the unit’s frame rate setting is 50Hz. Conforms to VESA DMT Version 1.0 Revision 11. 1920 x 1200 / 60Hz: Reduced blanking
    • HDMI audio: Linear PCM, 24-bits / 48kHz, 2ch
    • RGB / Component:
      • 480 / 59.94p
      • 576 / 50p
      • 720 / 59.94p
      • 720 / 50p
      • 1080 / 59.94p
      • 1080 / 50p
      • 640 x 480 / 60Hz
      • 800 x 600 / 60Hz
      • 1024 x 768 / 60Hz
      • 1280 x 768 / 60Hz
      • 1280 x 1024 / 60Hz
      • 1366 x 768 / 60Hz
      • 1400 x 1050 / 60Hz
      • 1600 x 1200 / 60Hz
      • 1920 x 1200 / 60Hz
      • Notes: The output refresh rates of 640 x 480--1400 x 1050 are 75Hz when the unit’s frame rate setting is 50Hz. Conforms to VESA DMT Version 1.0 Revision 11. 1920 x 1200 / 60Hz: Reduced blanking
    • Composite:
      • NTSC
      • PAL
    • Preview (HDMI):
    • Video: 1920 x 1080/60 Hz (fixed)
      • *When INPUT is selected, the sources are displayed using a reduced frame rate.
    • Audio: Linear PCM, 24-bits / 48kHz, 2ch
  • Input Jacks
    • Video/Audio:
      • HDMI: Type A (19 pins) x 4 (INPUT 1-4)
      • RGB / Component: HD DB-15 type x 4 (INPUT 1-4)
      • Composite: BNC type x 4 (INPUT 1-4)
    • Audio: 1/4" TRS phone type (balanced / unbalanced) x 1 pair (AUDIO INPUT)
  • Output Jacks
    • Video/Audio:
      • HDMI: Type A (19 pins) x 2 (OUTPUT 1 / 2)
      • RGB / Component: HD DB-15 type x 2 (OUTPUT 1 / 2)
      • Composite: BNC type x 1 (OUTPUT 1)
    • Preview: HDMI: Type A (19 pins) x 1
  • Other Jacks
    • Tally: HD DB-15 type x 1
      • (max input: 12V / 200mA, Open collector type)
    • MIDI: 5 pins DIN type x 2 ( IN, OUT / THRU)
    • RS-232C: 9 pins D-sub type x 1
    • USB: A type x 1 (host, for USB memories)
  • Signal Level /Impedance
    • RGB/ Component:
      • Signal level: 0.7Vp-p (H,V:5 VTTL)
      • Impedance: 75Ω
    • Composite:
      • Signal level: 1.0Vp-p (luminance), 0.286Vp-p (chroma (NTSC)), 0.3Vp-p (chroma (PAL))
      • Impedance: 75Ω
    • Analog audio:
    • Nominal input level: +4dBu
    • Maximum Input Level: +22dBu
    • Impedance: 15kΩ
  • Video Effects
    • Transition: Mix, Cut, Wipe (9 patterns)
    • Composition:
      • Picture in Picture,
      • DSK (Luminance Key, Chroma-Key)
    • Others: Output Fade
  • Audio Effects
    • Delay: 0.0-12.0 frames
  • Physical
    • Dimensions (WxDxH): 12-1/2" x 10-1/2" x 4-1/4" (317 x 266 x 108mm)
    • Weight: 7lbs., 8oz. (3.4kgs)
  • Other
    • Display: 7 segments, 3 characters LED
    • Power Supply: DC12V (AC Adapter)
    • Current Draw: 2.6A
