West Penn CN-RCP-RGB
Mini RCA Compression Connector


Our Price: $4.88
List Price: $5.85
Save up to 57% when you order by quantity!
Buy 20 @ $2.93 ea.
Buy 40 @ $2.73 ea.
Buy 60 @ $2.54 ea.
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

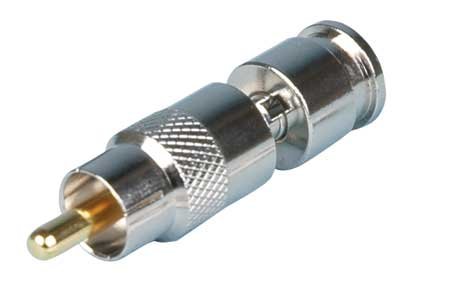

Male RCA compression connector RGB miniature- recommended small profile design.

  • 75 Ohm Construction
  • DC-200 MHZ- 30dB Return Loss - 1.06VSWR
  • Cable Pullout Force Exceeding 35 in/lbs.
  • Body Material Brass
  • Body Material (Plating) Nickel

Coax Sizing (inches) Min ~ Max
Center .015 ~ .025
Dielectric .065 ~ .078
Outer Jacket .095 ~ .115

Compression Tool: TL-548G
Stripping Tool: TL-KLEIN or TL-CSST-RGB
