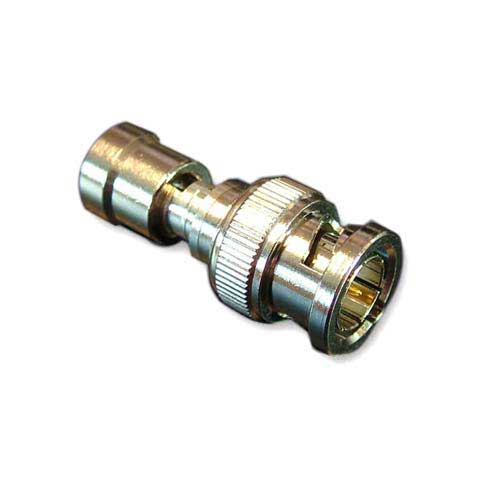

West Penn CN-BNCP-RGB
Mini BNC Compression Connector

OUR PART #  CN-BNCP-RGB

Our Price: $4.88
List Price: $5.85
Save up to 57% when you order by quantity!
Buy 20 @ $2.93 ea.
Buy 40 @ $2.73 ea.
Buy 60 @ $2.54 ea.
(Low Price Guarantee)
In Stock

Male BNC compression connector RGB miniature- recommended small profile design

  • 75 Ohm Construction
  • DC-1 GHz > 27 dB Return Loss < 1.10 VSWR
  • DC-2 GHz > 23 dB Return Loss < 1.16 VSWR
  • DC-3 GHz > 22 dB Return Loss < 1.18 VSWR
  • Cable Pullout Force Exceeding 45 in/lbs.
  • Body Material Brass
  • Body Material (Plating) Nickel

Coax Sizing (inches) Min ~ Max

  • Center .015 ~ .025
  • Dielectric .065 ~ .078
  • Outer Jacket .095 ~ .115

Tools:

  • Compression Tool: TL-548G
  • Stripping Tool: TL-KLEIN or TL-CSST-RGB



Click to download

West Penn CN-BNCP-RGB
Mini BNC Compression Connector

OUR PART #  CN-BNCP-RGB

Product Information:

Male BNC compression connector RGB miniature- recommended small profile design

  • 75 Ohm Construction
  • DC-1 GHz > 27 dB Return Loss < 1.10 VSWR
  • DC-2 GHz > 23 dB Return Loss < 1.16 VSWR
  • DC-3 GHz > 22 dB Return Loss < 1.18 VSWR
  • Cable Pullout Force Exceeding 45 in/lbs.
  • Body Material Brass
  • Body Material (Plating) Nickel

Coax Sizing (inches) Min ~ Max

  • Center .015 ~ .025
  • Dielectric .065 ~ .078
  • Outer Jacket .095 ~ .115

Tools:

  • Compression Tool: TL-548G
  • Stripping Tool: TL-KLEIN or TL-CSST-RGB



Click to download
