Cable Up by Vu MIC-ANA-BY-FOOT

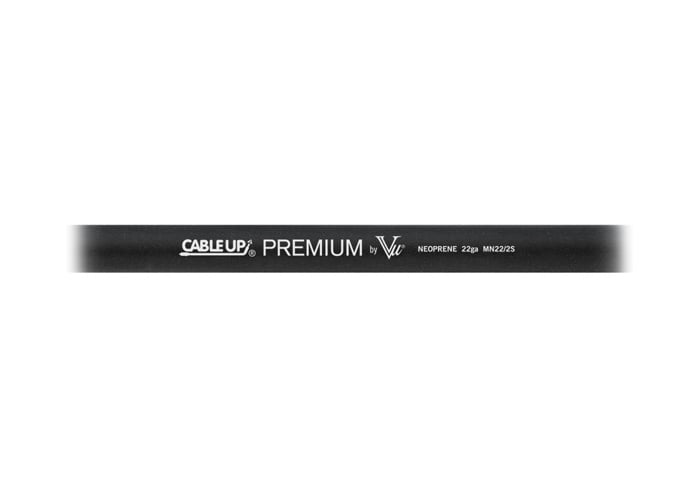

22AWG Premium Neoprene Cable Priced Per Foot

OUR PART #:  MIC-ANA-BY-FOOT

Cable Up's Premium line utilizes a low capacitance neoprene cable with a high strand count of oxygen-free copper, giving it excellent analog audio capabilities.
Learn More
Our Price: $1.50
List Price: $2.43
Save up to 53% when you order by quantity!
  • Buy 50: $1.39 each.
  • Buy 100: $1.28 each.
  • Buy 200: $1.13 each.
Write the first review.
Cable Up by Vu MIC-ANA-BY-FOOT
Qty:
Related Products

Cable Up's Premium line utilizes a low capacitance neoprene cable with a high strand count of oxygen-free copper, giving it excellent analog audio capabilities. These XLR cables are terminated with Amphenol® AX Series connectors for heavy-duty touring applications. RoHS-compliant.

Cable Up MIC-ANA Specifications:

  • 22 AWG
  • Electrical:
    • Max Operating Voltage: 600 VRMS
    • Capacitance Between Conductors of Pair @ 1 kHz: < 25 pf/ft
    • Nominal Conductor DC Resistance @ 20 deg C: 25.5 Ohms/ft
    • Nominal Shield DC Resistance @ 20 deg C: 3.1 Ohms/ft
  • Physical:
    • Temperature Rating: -40 - 90 deg C
    • Max. Pulling Tension: >55 lbs
    • Conductor Material and Diameter: (3x22x#39) AWG TC (Tinned Copper Wire)
    • Insulation Material: EPDM
    • Shield Type and Coverage Percentage: TC Briad, 85%
    • Jacket Material: Neoprene
    • Jacket Diameter: 0.261" +/- 0.009"
