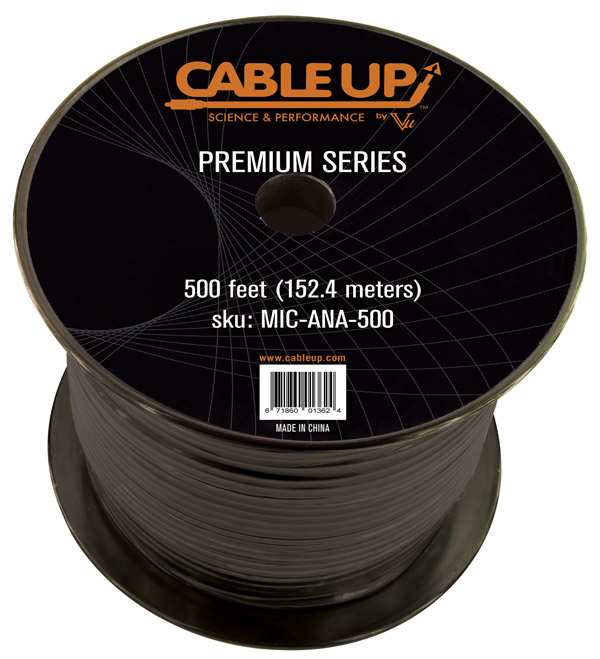

Cable Up by Vu MIC-ANA-500
500 ft Spool of Premium Neoprene Audio Cable

OUR PART #:  MIC-ANA-500

Cable Up's Premium line offers bulk neoprene analog audio cable in 500 ft. spools.
Learn More
Our Price: $746.22
List Price: $1,212.95
You save 38%!
Write the first review.
Cable Up by Vu MIC-ANA-500
Qty:
In Stock

Cable Up's Premium line offers bulk neoprene analog audio cable in 500 ft. spools.

Cable Up MIC-ANA-500 Specifications:

  • 22 AWG
  • Electrical:
    • Max Operating Voltage: 600 VRMS
    • Capacitance Between Conductors of Pair @ 1 kHz: < 25 pf/ft
    • Nominal Conductor DC Resistance @ 20 deg C: 25.5 Ohms/ft
    • Nominal Shield DC Resistance @ 20 deg C: 3.1 Ohms/ft
  • Physical:
    • Temperature Rating: -40 - 90 deg C
    • Max. Pulling Tension: >55 lbs
    • Conductor Material and Diameter: (3x22x#39) AWG TC (Tinned Copper Wire)
    • Insulation Material: EPDM
    • Shield Type and Coverage Percentage: TC Briad, 85%
    • Jacket Material: Neoprene
    • Jacket Diameter: 0.261" +/- 0.009"
