Cable Up by Vu MIC-ANA-XX-100
100 ft Neoprene XLR Microphone Cable

OUR PART #:  MIC-ANA-XX-100

Cable Up Premium microphone cables utilize a low capacitance neoprene cable with a high strand count of oxygen-free copper, giving it excellent analog audio capabilities.
Learn More
Our Price: $264.95
List Price: $287.95
You save 8%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cable Up by Vu MIC-ANA-XX-100
Qty:
In Stock

Similar Products

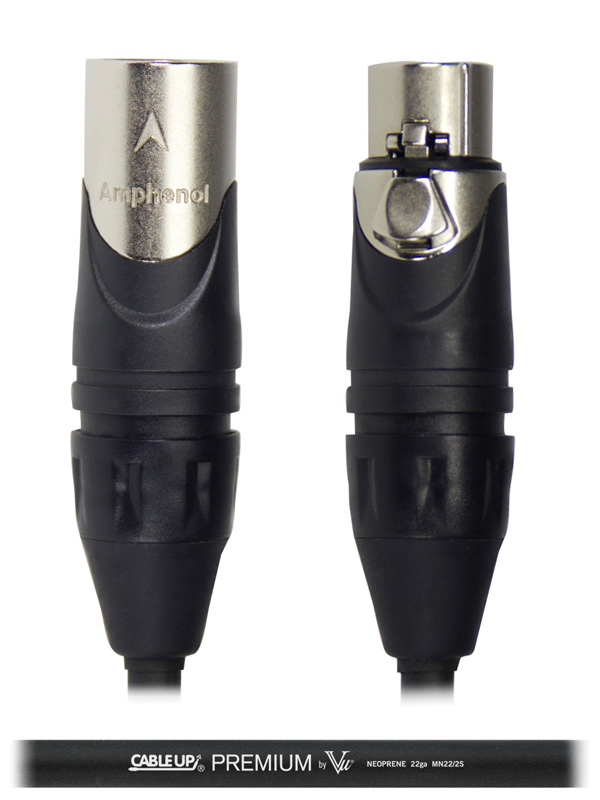

Cable Up Premium microphone cables utilize a low capacitance neoprene cable with a high strand count of oxygen-free copper, giving it excellent analog audio capabilities. These XLR cables are terminated with Amphenol® AX Series connectors for heavy-duty touring applications. RoHS-compliant.

All Cable Up® Premium cables are covered by a 5-year unconditional warranty against defects in material or workmanship.

Cable Up MIC-ANA-XX-100 Specifications:

  • Connector:
    • Male: Amphenol AX3M
    • Female: Amphenol AX3F
    • General:
      • Number of Contacts: 3
      • Termination: Solder
      • Max Wire Gauge - Stranded Wire: Solder: 14 AWG
      • Flammability rating of insulator plastics: UL94V-0
      • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
    • Electrical:
      • Service Voltage: RMS 133V*
        *Not suitable for domestic applications above 50V
      • Test Voltage AC RMS: 1400V
      • Current carrying capacity: Solder: 15A
      • Typical Contact Resistance: </= 3 mOhm
      • Insulation Resistance: >/= 1GOhm
    • Climatic:
      • Protection Class: IP40
      • Operating Temperature: -25°C to +75°C (-13°F to -167°F)
    • Mechanical:
      • Insertion and Withdrawal force: >/= 10N - </=30N
      • Approx. Weight: 0.068 lb (31 g)
      • Typical Cable retention force*: 50 - 100 lbs (22 - 44 kg)
        *Dependent on cable material and diameter.
      • Cable O.D. Range: 0.118" - 0.314" (3-8 mm)
      • Mechanical Operations: 1000 mating cycles
    • Materials:
      • Connector shell - Metal Shell Finish: Diecast zinc alloy, satin nickel or black
      • Insulators: UL94V-0 PA66, 30% Glass Filled
      • Boot / Backshell finish: UL94V-0 Noryl N190 / Santoprene, black
      • Cable clamp: Noryl N190
      • Sleeve: Noryl N190
      • Male Contact: Machines - Solder: Brass
      • Female Contact: Stamped - Solder: Phosphor bronze
  • Cable: Amphenol
    • 22 AWG
    • Electrical:
      • Max Operating Voltage: 600 VRMS
      • Capacitance Between Conductors of Pair @ 1 kHz: < 25 pf/ft
      • Nominal Conductor DC Resistance @ 20 deg C: 25.5 Ohms/ft
      • Nominal Shield DC Resistance @ 20 deg C: 3.1 Ohms/ft
    • Physical:
      • Temperature Rating: -40 - 90 deg C
      • Max. Pulling Tension: >55 lbs
      • Conductor Material and Diameter: (3x22x#39) AWG TC (Tinned Copper Wire)
      • Insulation Material: EPDM
      • Shield Type and Coverage Percentage: TC Briad, 85%
      • Jacket Material: Neoprene
      • Jacket Diameter: 0.261" +/- 0.009"
