Cable Up MIC-ANA-XX-25 25 ft Neoprene XLR Microphone Cable

OUR PART #: MIC-ANA-XX-25

Copied to clipboard

Cable Up Premium microphone cables utilize a low capacitance neoprene cable with a high strand count of oxygen-free copper, giving it excellent analog audio capabilities. ...Read more

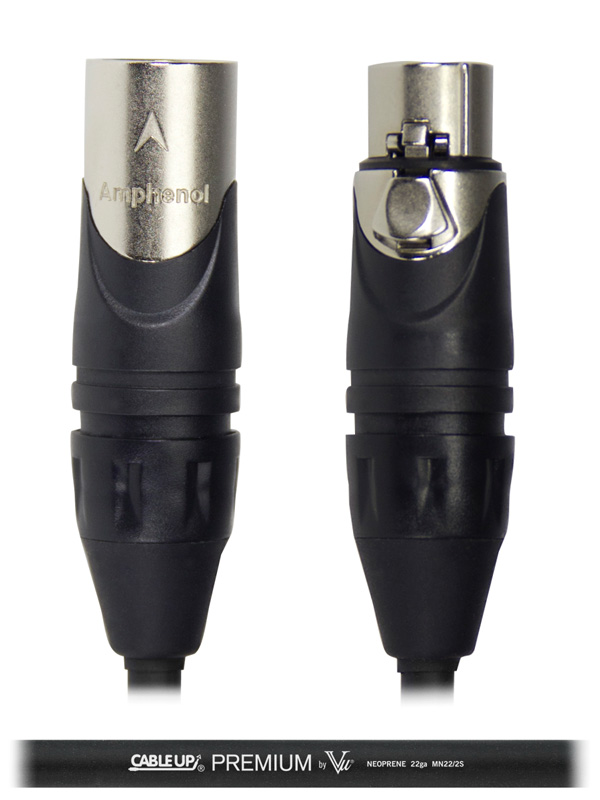

Cable Up MIC-ANA-XX-25 25 Ft Neoprene XLR Microphone Cable Image 1
Cable Up MIC-ANA-XX-25 25 Ft Neoprene XLR Microphone Cable
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Cable Up Premium microphone cables utilize a low capacitance neoprene cable with a high strand count of oxygen-free copper, giving it excellent analog audio capabilities. These XLR cables are terminated with Amphenol® AX Series connectors for heavy-duty touring applications. RoHS-compliant.

All Cable Up® Premium cables are covered by a 5-year unconditional warranty against defects in material or workmanship.

Cable Up MIC-ANA-XX-25 Specifications:

  • Connector:
    • General:
      • Number of Contacts: 3
      • Termination: Solder
      • Max Wire Gauge - Stranded Wire: Solder: 14 AWG
      • Flammability rating of insulator plastics: UL94V-0
      • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
    • Electrical:
      • Service Voltage: RMS 133V*
      • Test Voltage AC RMS: 1400V
      • Current carrying capacity: Solder: 15A
      • Typical Contact Resistance: < /= 3 mOhm
      • Insulation Resistance: >/= 1GOhm
    • Climatic:
      • Protection Class: IP40
      • Operating Temperature: -25°C to +75°C (-13°F to -167°F)
    • Mechanical:
      • Insertion and Withdrawal force: >/= 10N - < /=30N
      • Approx. Weight: 0.068 lb (31 g)
      • Typical Cable retention force*: 50 - 100 lbs (22 - 44 kg)
      • Cable O.D. Range: 0.118" - 0.314" (3-8 mm)
      • Mechanical Operations: 1000 mating cycles
    • Materials:
      • Connector shell - Metal Shell Finish: Diecast zinc alloy, satin nickel or black
      • Insulators: UL94V-0 PA66, 30% Glass Filled
      • Boot / Backshell finish: UL94V-0 Noryl N190 / Santoprene, black
      • Cable clamp: Noryl N190
      • Sleeve: Noryl N190
      • Male Contact: Machines - Solder: Brass
      • Female Contact: Stamped - Solder: Phosphor bronze
    • Male: Amphenol AX3M
    • Female: Amphenol AX3F
  • Cable: Amphenol
    • Electrical:
      • Max Operating Voltage: 600 VRMS
      • Capacitance Between Conductors of Pair @ 1 kHz: < 25 pf/ft
      • Nominal Conductor DC Resistance @ 20 deg C: 25.5 Ohms/ft
      • Nominal Shield DC Resistance @ 20 deg C: 3.1 Ohms/ft
    • Physical:
      • Temperature Rating: -40 - 90 deg C
      • Max. Pulling Tension: >55 lbs
      • Conductor Material and Diameter: (3x22x#39) AWG TC (Tinned Copper Wire)
      • Insulation Material: EPDM
      • Shield Type and Coverage Percentage: TC Briad, 85%
      • Jacket Material: Neoprene
      • Jacket Diameter: 0.261" +/- 0.009"
    • 22 AWG
