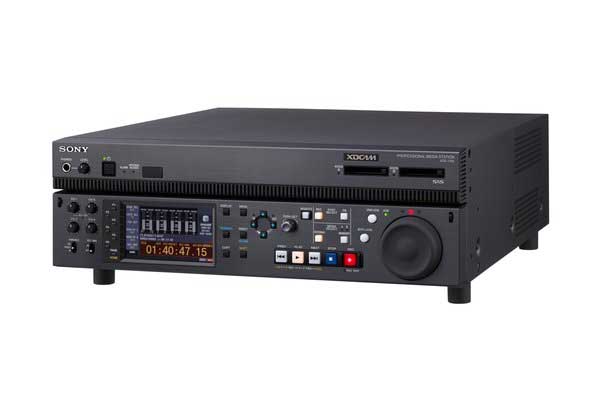

Sony XDS1000
Entry Level Professional Media Station with Dual SxS Card Slots

OUR PART #  XDS1000

Call for price! Not available online.
List Price: $15,750.00


The XDS-1000 is a blend of video server technology integrated with Sony SxS memory card readers with front panel controls similar to XDCAM decks. The XDS-1000 has 1.0 TB of RAID-4 hard drive internal storage and has dual SxS card readers. The XDS-1000's engine can provide up to 200 Mbps of bandwidth for file transfers and base band I/O operations.

Sony XDS-1000 Features:

  • Available September 1, 2011
  • HD recording at up to 50 Mb/s using MPEG HD422
  • Support for existing XDCAM HD and XDCAM SD formats as standard
  • 1080i and 720P recording
  • Dual-layer disc (50 GB, PFD50DLA) and single-layer disc (23.3 GB, PFD23A) support
  • Thumbnail operation
  • Built-in up-conversion to HD from SDI input when recording
  • HD/SD conversion and cross conversion between 1080 and 720 at the output during playback
  • Multi-format compact HD/SD Recorder
  • Video format (4:2:2 HD 1080 50i, 59.94i)
  • High-quality eight-channel audio recording
  • 4.3" type color LCD display
  • Tilt up front panel
  • VTR-like jog/shuttle operation (for playing material on disc or internal storage)
  • Video control (via front panel and remote)
  • Ethernet interface

Sony XDS-1000 Specifications:

  • Power Requirements: AC 100 V to 240 V, 50/60 Hz
  • Power Consumption: 170 W
  • Operating Temperature: +5° to +40°C (+41° to+104°F)
  • Storage Temperature: -20° to +60°C (-4° to +140°F)
  • Humidity: 25 to 90% (relative humidity)
  • Mass: 15.5 kg (34 lb 2 oz)
  • Dimensions (W x H x D) (Excluding Protrusions): 16.75" x 5.25" x 18.125" (424 x 132 x 460 mm)
  • Search Speed Range:
    • Jog mode: -1 to +1 times normal spee
    • Variablemode: -2 to +2 times normal speed
    • Shuttle mode: -20 to +20 times normalspeed:
    • F.Fwd/Rev: -35 to +35 times normal speed

Inputs/Outputs Specifications

  • Reference Input:
    • BNC x 2 (including loop through), HD/SD
    • HD Tri-level sync (0.6 Vp-p/75 O/negative), HD/SD or SD blackburst/composite sync (0.286 Vp-p/75 O/negative), HD/SD
  • SDI Input
    • BNC x 1, HD (HD/SD switchable)
      • SMPTE 292M (w/embedded audio), HD
      • SMPTE 259M (w/embedded audio), HD
  • Analog Audio Input  XLR 3-pin (female) x 2(channel selectable)
  • +4/0/-3/-6 dBu (selectable)
  • 10 kO, balanced
  • Digital Audio Input (AES/EBU)  BNC (x4) - 8channels total (2 ch each) AES-3id-2001
  • Time Code Input  BNC x 1, SMPTE time code, 0.5to 18 Vp-p/3.3 kO/unbalanced
  • Composite Ouput  BNC (x1) - 1.0 Vp-p/75O/negative, SMPTE 170M
  • SDI Output:
    • BNC (x 2), HD
      • 1: SMPTE 292M (w/embedded audio),HD
      • 2: SMPTE 292M (w/embedded audio), character On/Off, HD
    • BNC (x 2),SD
      • 1: SMPTE 259M (w/embedded audio), SD
      • 2: SMPTE 259M (w/embedded audio), character On/Off, SD
  • Monitor Video:
    • BNC (x1) - HD-SDI Monitor Output (w/ embedded audio) -Play and Record Channel Monitoring (character on/off)
    • BNC (x1) - SD-SDIMonitor Output (w/ embedded audio) - Play and Record Channel Monitoring(character on/off)
    • HD15 (VGA) x1 - for front LCD panel output
    • HDMI (type A, 19 pin) x1 - HDMI Monitor Output
  • Analog Audio Output:
    • XLR 3-pin (male) x 2 (channelselectable)
    • +4/0/-3/-6 dBu (selectable), 600 O, Lo-Z, balanced
  • Monitor Audio  XLR 3-pin (male) x 2, +4 dBu,600O, Lo-Z, balanced
  • Digital Audio Output (AES/EBU)  BNC (x4) - 8channels total (2 ch each) AES-3id-2001
  • Headphone Output:
    • JM-60 Stereo phone jack x 1
    • -13 dBu, 8 O, unbalanced
  • Time Code Output  BNC x 1, SMPTE time code, 1.0Vp-p/75 O/unbalanced
  • Video Control  D-sub 9-pin (female) x 1, EIARS-423
  • Ethernet  RJ-45 x 1:
    • 1000Base-T: IEEE802.3ab
    • 100Base-TX:IEEE802.3u
    • 10Base-T: IEEE802.3
  • USB  Hi-Speed USB 2.0 (Front: x1, Rear: x4)
  • Remote:
    • (9P) Input  D-sub, 9-pin (female) (x2), RS-422A
    • Sony 9-pin VTR protocol (player commands only)
    • VDCP (play and record commands)
  • AC Input  x 1, 100 to 240 V, 50/60 Hz
  • GPIO  D-sub, 15-pin (female) (x1), Input: TTL Level, Output: opencollector

Audio Performance Specifications

  • Sampling Frequency  48 kHz
  • Quantization  24 bits
  • Frequency Response  20 Hz to 20 kHz +0.5/-1.0 dB(0 dB at 1 kHz)
  • Dynamic Range  More than 90 dB
  • Distortion  Less than 0.05% (at 1kHz)
  • Headroom  20/18/16/12 dB (selectable)

Built-In Display Specifications

  • Built-In Display  4.3-inch type color LCD monitor
