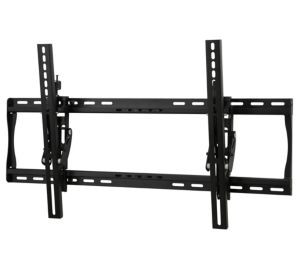

Peerless STX650L
SmartMountXT Universal Locking Tilt Wall Mount for 37"-75" Displays


Call for info!

Limitless placement opportunities are delivered with speed and ease with both horizontal and vertical adjustment capability. Its slim, open wall plate architecture delivers display placement flexibility and enables hands-free behind-the-display access along with cable management. Quick and easy installation and optional IncreLok™ tilt technology complete the ultimate secure, low profile flat panel installation.

Peerless-AV STX650L Features:

  • Open wall plate design allows for total wall access, increasing electrical and cable management options
  • Pre-tensioned universal tilt adaptor brackets offer up to +15/-5° of One-Touch™ tilt adjustment in one easy motion
  • Optional IncreLok™ feature offers fixed tilt lock in 5° increments
  • Easy-Glide™ design ensures that the display is securely attached to the wall plate
  • 5º of back tilt offers 3" of space for hands-free, behind the display access
  • Up to 24" of horizontal adjustment for centering display on wall
  • Up to 1" of vertical adjustment on each universal display adaptor bracket for post installation leveling and height adjustment fine-tuning
  • Universal tilt adaptor brackets easily hook onto wall plate for fast installation
  • Low profile design holds display 1.69" (43mm) from the wall
  • Fits displays with mounting hole patterns from 100 x 100mm (3.94"W x3.94"H) to 723 x 433mm (28.46W x 17.04"H)

Peerless-AV STX650L Specifications:

  • Minimum to Maximum Screen Size:  37" to 75"
  • VESA Pattern:  600 x 400
  • Mounting Pattern:  723 x 433mm (28.46 x 17.04")
  • Weight Capacity:  120lb (54kg)
  • Color:  Black
  • Finish:  Powder Coat
  • Security Features:  Non-Security Hardware
  • Tilt:  +15 / -5
  • Increlock Increments:  -5, 0, 5, 10, 15
  • Distance from Wall:  1.69 - 6.55" (43 - 166mm)
  • Product Dimensions:  30.87 x 18.00 x 1.69 - 6.55" (784 x 457 x 43 -166mm)
  • Ship Dimensions:  10.125 x 3.5 x 32.5" (257.2 x 88.9 x 825.5mm)
  • Shipping Weight:  11lb (4.99kg)
