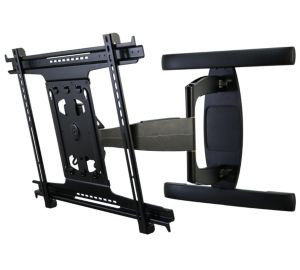

Peerless SAX762PU
SmartMountXT Universal Articulating Wall Arm for 40"-75" Displays

OUR PART #  SAX762PU

Call for info!


From any angle, this wall arm mount reflects remarkable form and function. Retracting the flat panel display to a mere 2.6" (66mm) from the wall, extending it out to 26.54" (674mm) from the wall and allowing for a full 180° of side to side motion offers the possibility of perfectly positioning displays up to 63". A double stud installation creates a more sound design for heavier flat panel displays. With advanced features such as post-installation height adjustment, roll and lateral shift, fine-tuning of the installation is quick and simple. This articulating arm also integrates an internal cable management system that creates a clean and organized installation, while at the same time protecting the cables. Integrate an in-wall cable and power accessory into the wall plate cutout to complete the installation. Designed and built in the USA, this mount maintains the same brilliant quality you expect to find with the SmartMount® Series of Articulating and Pivot Wall Arm Mounts, but provides the premium features you can only find with SmartMountXT.

Peerless-AV SAX762PU Features:

  • Low-profile when retracted at 2.6" (66mm) and can extend up to 26.54" (674mm) from the wall
  • Internal cable management provides ample area to run cables to complete a clean, professional installation
  • Stylish wall plate covers create a finished look and are easy to install and remove
  • One-Touch™ tilt mechanism allows adjustment of +15/-5° without the use of tools
  • ±5° of roll for post-installation leveling
  • Display can be rotated from landscape to portrait without removing the display
  • ±0.5" of vertical adjustment for post-installation height adjustment fine-tuning
  • Open Wall Plate design and cutout increase electrical and cable management options
  • Double Stud Installation

Peerless-AV SAX762PU Specifications:

  • Minimum to Maximum Screen Size:  40" to 75"
  • VESA Pattern:  600 x 400
  • Mounting Pattern:  661 x 449mm (26.03 x 17.69")
  • Weight Capacity:  110lb (50.0kg)
  • Color:  Black
  • Finish:  Powder Coat
  • Security Features:  Non-Security Hardware
  • Tilt:  +15 / -5
  • Swivel Yaw:  +90 / -90
  • Roll:  +5 / -5
  • Distance from Wall:  2.60 - 26.54" (66 - 674mm)
  • Product Dimensions:  29.00 x 19.50 x 2.60 - 26.54" (737 x 495 x 66 - 674mm)
  • Ship Dimensions:  21.25 x 6.125 x 35.75" (539.8 x 155.6 x 908.1mm)
  • Shipping Weight:  39.25lb (0kg)
