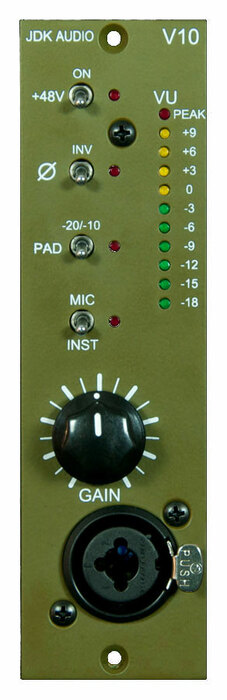

JDK Audio V10
500 Series Single Channel Microphone Preamp

OUR PART #:  V10

The JDK Audio V10 is a single channel professional grade microphone preamp...
Learn More
Our Price: $660.25
List Price: $695.00
You save 5%!
Write the first review.
JDK Audio V10
Qty:
In Stock

Related Products

The JDK Audio V10 is a single channel professional grade microphone preamp, designed from the ground up by API Engineers to offer a versatile and high quality input for microphones as well as instruments. The V10 conforms to API's 500 Series format and is a member of API's VPR Alliance.  Like JDK's R20, the V10 provides premium analog microphone pre-amplification designed to provide a low noise, solid front end for all audio applications. Meticulously detailed and solidly constructed, the V10 features hands-on analog control of the gain level. Individual toggle switches control the selection of 48v, polarity, pad and a mic/instrument switch.

The unit features both a mic and an instrument input, with switchable phantom power, phase, and pad. Metering is a multi-segmented LED with peak indication.

Features:

  • Mic Preamplifier offers 54 dB of gain
  • Concise LED metering for monitoring output level
  • Front panel, high-impedance instrument input with 45 dB of gain
  • Pad switch attenuates the microphone signal by 20 dB, or the instrumentsignal by 10 dB
  • Switchable 48v Phantom Power
  • Low distortion, low noise circuitry
  • Fully balanced output

Specifications:

  • Front Connector: Combo jack - XLR Microphone Input / HI-Z 1/4"Instrument Input
  • Rear Connector: API 500 Series Edge Connector - Microphone Input onedge connector, parallel with front XLR, - jumper disconnectable BalancedOutput (pin 2 hot) on edge connector
  • Microphone Input:
    • Max Gain: +55db (no pad), +36db (w/pad)
    • Min Gain: +9db (no pad), -10db (w/pad)
    • Pot Gain Range:  46db
    • Pad: -20db
    • Input Impedance: 6.8K Ohms
    • Bandwidth: +/- 0.5db, 20Hz - 50kHz
    • THD+N @ 1kHz, +4dbu: 0.013%
    • Maximum Level: +20dbu
    • Signal-to-Noise Ratio: -90db
  • Instrument Input:
    • Max Gain: +31db (no pad), +21db (w/pad)
    • Min Gain: +10db (no pad), 0db (w/pad)
    • Pot Gain Range:  21db
    • Pad: -10db
    • Input Impedance: 500K Ohms
    • Bandwidth: +/- 0.5db, 20Hz - 20kHz
    • THD+N @ 1kHz, +4dbu: 0.002%
    • Maximum Level: +20dbu
    • Signal-to-Noise Ratio: -80db
  • Power Consumption: +/- 16VDC @ 50mA
  • Size: 1.5" x 5.25" x 7" (38 x 133 x 178 mm)
  • Weight: 0.75 lb. (0.34 kg)

Click to download
