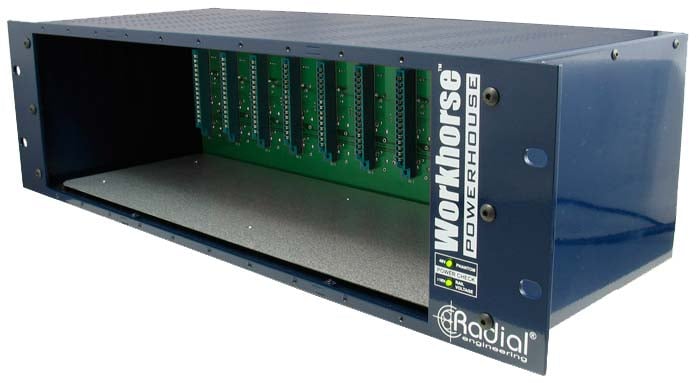

Radial Engineering Powerhouse
500 Series 10-Slot Rackmount Chassis

OUR PART #  POWERHOUSE

Our Price: $899.99
List Price: $1,000.00
You save 10%! (Low Price Guarantee)
In Stock

Recommended Accessories

Features:

  • 10-slot design for maximum density
  • Individual XLR & 1/4" TRS I/O on each slot
  • Easy-Glide module alignment tray
  • Innovative feed and link functions

Radial Engineering's Powerhouse is a 10-module 500 series power-rack designed to accommodate both older and newer 500 series modules and provide the studio with maximum density in a standard 19" rack frame.

The design begins with heavy 14 gauge steel construction and baked enamel finish for maximum shielding against noise and greater durability when subjected to road use.  An 'easy glide' slider tray makes it painless to align the PCB connector to the 15-pin card edge receptacle when swapping modules.  Once connected, the rear panel sports a standard array of XLRs to connect to and from the workstation or mixer.  This is augmented with a series of 1/4" TRS connectors that enable cross-patching and open the door to the excitement of parallel signal processing.  Instead of having to hard patch modules together using a cable, the Powerhouse incorporates an innovative feed switch that instantly connects the signal to the adjacent module.  This makes building signal chains quick and eliminates the need for extra cables.  And unlike older racks that require soldering when modules are used in stereo, the Powerhouse is equipped with a stereo link function that takes care of the task with a simple slide of a switch.

Unlike older racks that are limited to an average of 130 milliamps per slot, the Powerhouse boasts a 1600 milliamp power supply that lets you share the power as needed.  This means it can deliver 300 milliamps to your two tube preamps and still have over 1000 milliamps left in the pool.  And just like all Workhorse racks, the Powerhouse is equipped with extra safety features to ensure safe use when mixing and matching various brands.

Powerhouse Applications:

  • Using the Powerhouse as a side car: The Powerhouse houses10 modules in a compact 19" rack space, making it ideal for use as a side carto house various effects and dynamic processors.  Simply wire to yourpatchbay and enjoy the convenience, power and flexibility of the 500 seriesformat.
  • Using the Powerhouse for live recording: Live recordingis best achieved by using separate preamps for each microphone andinstrument.  Combine Radial PowerPre mic preamps and Radial JDV-Preinstrument preamps to record pristine audio tracks and then split the outputto the house mixer and PA system.
  • Creating the ultimate channel strip: Combine yourfavourite sounding preamps, EQs and compressors to create the ultimate stereopreamp.  With 1600 milliamps of current, you have plenty of power to keepyour tube preamps happy.
1-Slot Filler Panel for 500 Series RacksRadial Engineering R700-9110-00 1-Slot Filler Panel for 500 Series Racks

This blank filler panel keeps your rack safe from dust and other contaminants while providing the inside a protective shield from inexperienced hands.Note: Product shown in image is for illustrative purposes only - actual product is ...

In Stock

Our Price:$12.99List Price: $13.50

12 Thumb ScrewsRadial Engineering Thumb Set 12 Thumb Screws

This set of 12 thumb screws from Radial Engineering is designed for securing your 500 Series modules into a Radial enclosure.Radial Engineering Part #: R700 9100

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$18.99List Price: $20.00You save 5%!

2-Slot Filler Panel for 500 Series RacksRadial Engineering R700-9111-00 2-Slot Filler Panel for 500 Series Racks

This blank filler panel keeps your rack safe from dust and other contaminants while providing the inside a protective shield from inexperienced hands.Note: Product shown in image is for illustrative purposes only - actual product is ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$14.99List Price: $15.50

Radial Engineering Powerhouse
500 Series 10-Slot Rackmount Chassis

OUR PART #  POWERHOUSE

Product Information:

Features:

  • 10-slot design for maximum density
  • Individual XLR & 1/4" TRS I/O on each slot
  • Easy-Glide module alignment tray
  • Innovative feed and link functions

Radial Engineering's Powerhouse is a 10-module 500 series power-rack designed to accommodate both older and newer 500 series modules and provide the studio with maximum density in a standard 19" rack frame.

The design begins with heavy 14 gauge steel construction and baked enamel finish for maximum shielding against noise and greater durability when subjected to road use.  An 'easy glide' slider tray makes it painless to align the PCB connector to the 15-pin card edge receptacle when swapping modules.  Once connected, the rear panel sports a standard array of XLRs to connect to and from the workstation or mixer.  This is augmented with a series of 1/4" TRS connectors that enable cross-patching and open the door to the excitement of parallel signal processing.  Instead of having to hard patch modules together using a cable, the Powerhouse incorporates an innovative feed switch that instantly connects the signal to the adjacent module.  This makes building signal chains quick and eliminates the need for extra cables.  And unlike older racks that require soldering when modules are used in stereo, the Powerhouse is equipped with a stereo link function that takes care of the task with a simple slide of a switch.

Unlike older racks that are limited to an average of 130 milliamps per slot, the Powerhouse boasts a 1600 milliamp power supply that lets you share the power as needed.  This means it can deliver 300 milliamps to your two tube preamps and still have over 1000 milliamps left in the pool.  And just like all Workhorse racks, the Powerhouse is equipped with extra safety features to ensure safe use when mixing and matching various brands.

Powerhouse Applications:

  • Using the Powerhouse as a side car: The Powerhouse houses10 modules in a compact 19" rack space, making it ideal for use as a side carto house various effects and dynamic processors.  Simply wire to yourpatchbay and enjoy the convenience, power and flexibility of the 500 seriesformat.
  • Using the Powerhouse for live recording: Live recordingis best achieved by using separate preamps for each microphone andinstrument.  Combine Radial PowerPre mic preamps and Radial JDV-Preinstrument preamps to record pristine audio tracks and then split the outputto the house mixer and PA system.
  • Creating the ultimate channel strip: Combine yourfavourite sounding preamps, EQs and compressors to create the ultimate stereopreamp.  With 1600 milliamps of current, you have plenty of power to keepyour tube preamps happy.
