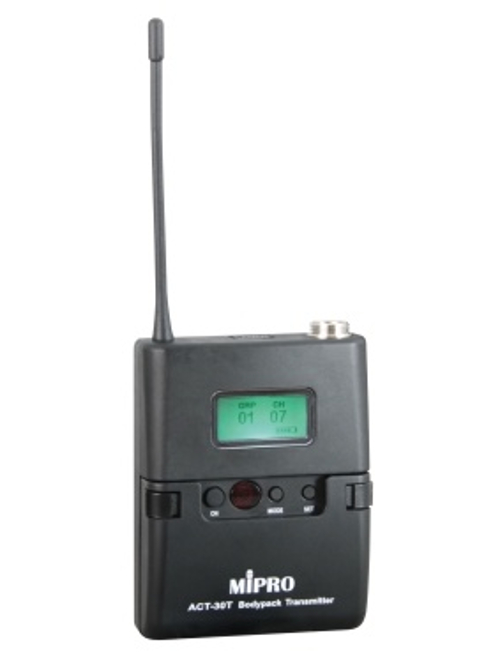

MIPRO ACT-30T
Mini Bodypack Transmitter

OUR PART #:  ACT30T

MiPro's ACT-30T is a miniature bodypack transmitter.  MiPro ACT-30T Features: Miniature, compact design. Durable lightweight construction.
Learn More
Selected Model Price: $172.50
List Price: $219.00
Call for Special Sale Price on
Selected Model!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MIPRO ACT-30T
Select model: (shipping times are approximate)
Qty:

Similar Products

MiPro's ACT-30T is a miniature bodypack transmitter.

MiPro ACT-30T Features:

  • Miniature, compact design.
  • Durable lightweight construction.
  • Top features mute switch, mini-XLR connector and antenna.
  • Backlit LCD displays various parameters and indicators.
  • Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
  • Connector for optional MJ-70 remote mute switch cable.
  • Low spurious PLL-synthesized technology enhances frequency stability and reliability.
  • One-touch ACT syncs the transmitter and receiver frequency automatically.
  • Selectable impedance for microphone or guitar/line inputs.
  • Built-in transmitter AF gain adjustment.
  • 4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.
  • Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.
  • Adjustable belt clip allows wearing transmitter in up or down position.

Available Options:

  • 6A (620-644 MHz)
  • 6B (644-668 MHz)

MiPro ACT-30T Specifications:

Housing

Rugged Plastic

LCD Display

LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes.

Oscillation Mode

PLL Synthesized

Frequency Range

UHF 480~934MHz

Bandwidth

24MHz

Channel Set-Up

ACT Sync

RF Output Power

10~50mW (switchable)

Spurious Emissions

<-55dBc

Max. Input Level

0dBV

Microphones

MU-13, MU-23, MU-210, MU-53L, MU-55L, MU-53HN, MU-55HN

Mute Connector

Optional MJ-70 remote mute switch

Battery

2 AA alkaline

Dimensions

63(W)√ó82(H)x22(D)mm / 2.5(W)x3.2(H)x0.9(D)"

Weight

Approx. 81g / 2.9oz (excluding batteries)

Patents & Approvals

Patented. Telecom and safety regulations approved.

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
