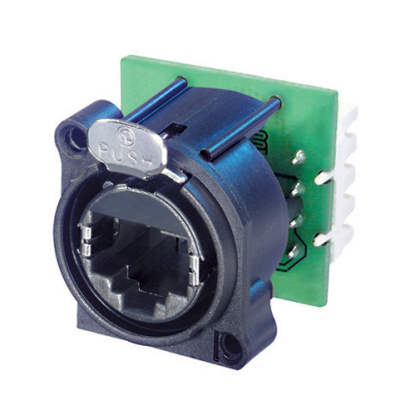

Neutrik NE8FAV-YK
A-Series etherCON RJ45 Receptacle Chassis Connector with IDC Krone Punch Down Terminals

OUR PART #:  NE8FAVYK

Neutrik's NE8FAVC-YK is a panel mount RJ45 receptacle with IDC terminals,  A-Series cutout with latch lock, max. panel thickness 3 mm.  Mounting screws are included.
Learn More
Our Price: $7.80
List Price: $11.00
Save up to 41% when you order by quantity!
  • Buy 25: $7.04 each.
  • Buy 50: $6.79 each.
  • Buy 100: $6.54 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8FAV-YK
Qty:
Similar Products

Neutrik's NE8FAVC-YK is a panel mount RJ45 receptacle with IDC terminals,  A-Series cutout with latch lock, max. panel thickness 3 mm.  Mounting screws are included.

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all-plastic A-Series offers the most space saving and cost effective design.

Neutrik NE8FAV-YK Features:

  • Accommodates rugged etherCON NE8MC or any standard RJ45 plug
  • Approved latch lock system
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Selectable ground - panel connection
  • Easy and quick mounting using Krone punch down terminals

Neutrik NE8FAV-YK Specifications:

  • Electrical:
    - Contact resistance: < 10 mOhms (inner)
     -Dielectric strength: 1 kVdc
    - Frequency range: 1 - 100MHz
    - Insulation resistance: > 0.5 GO
    - Rated current per contact:1,5 A
    - Rated voltage: 50 V
    - Transmission performance: CAT 5e
    - Standard compliance: TIA/EIA 586B, IEC11801
  • Mechanical:
    - Insertion force: = 20 N
    - Withdrawal force: = 20N
    - Lifetime: > 1000 mating cycles
    - Panel thickness: max. 3 mm0.12'
    - Wire size: 0.14 - 0.5 mm²
    - Wire size: 26 - 20 AWG
    - Lockingdevice: Latch lock
    - Mounting direction: rear
    - Chassis shape: A
  • Material:
    - Contact plating: 0.2 µm Au over Ni plating
    - Contacts: Bronze (CuSn8)
    - Insert: PBTP 15 % GR
    - Shell: PBTP 15 % GR
    - Strain relief: CuZn35Pb2, Tin plated
  • Environmental:
    - Flammability: UL 94 V-0
    - Temperature range: -30 °Cto +80 °C
