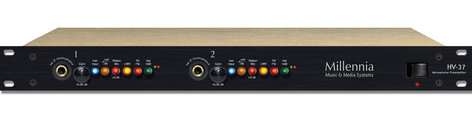

Millennia Media Inc HV-37
Rackmount Microphone & Instrument Preamplifier

OUR PART #:  HV37

Millennia's HV-37 is a rackmountable microphone and instrument preamplifier.
Learn More
Our Price: $1,439.99
List Price: $1,600.00
You save 10%!
Write the first review.
Millennia Media Inc HV-37
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Millennia's HV-37 is a rackmountable microphone and instrument preamplifier.

Features:

  • Continuously variable gain control
  • Front panel instrument input
  • DC coupled ribbon mic with 10dB gain boost setting
  • 80 Hz rolloff filter
  • 48V phantom power
  • 15 dB Pad
  • Polarity flip
  • Internal power supply - 100 to 240V operation

Specifications:

  • Minimum Gain:  8.5 dB
  • Maximum Gain:  (continuously variable): 60 dB (70 dB in Ribbon Mode)
  • Frequency Response +0 / -3 dB:  sub 3 Hz to beyond 300 kHz
  • Noise 60 dB Gain, 10 Hz - 30 kHz, Inputs common:  -130 dB EIN
  • Total Harmonic Distortion + Noise 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out:  < .001%, Typ. < .0005% (< 5 ppm)
  • Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out:  < .0009%
  • Phase Response 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out:  < 2 degrees deviation
  • Common Mode Rejection Ratio 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.:  > 65 dB, Typ > 85 dB
  • Slew Rate 35 dB Gain, +27 dBu Out:  > 25 Volts per microsecond
  • Maximum Input Level 20 Hz - 40 kHz:  +20 dBu (no attenuator pads required)
  • Maximum Output Level 20 Hz - 40 kHz:  +28 dBu
  • Phantom Input Impedance 1 kHz:  6,750 ohms
  • Output Impedance:  24.3 Ohms (x2)
  • Phantom Powering:  +48 V dc, +/- 2 V dc
  • Dimensions/Shipping Weight:  19” W x 1.75” H x 9” D, 13 lbs.
