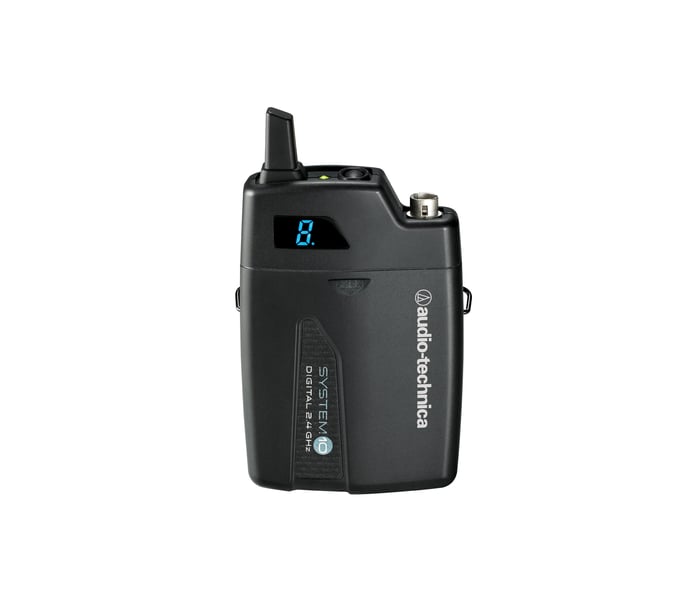

Audio-Technica ATW-T1001
System 10 Wireless UniPak® Transmitter

OUR PART #:  ATW-T1001

Audio-technica's ATW-T1001 is a UniPak wireless body pack transmitter that is designed for use with their System 10 wireless system.
Learn More
Our Price: $179.00
Write the first review.
Audio-Technica ATW-T1001
In Stock

Related Products

Audio-technica's ATW-T1001 is a UniPak wireless body pack transmitter that is designed for use with their System 10 wireless system.

Audio-technica's System 10
A digital high-fidelity wireless system that's designed to offer performing musicians and presenters advanced 24-bit operation as well as easy setup, and clear, natural sound quality. It operates in the 2.4 GHz range, far from TV and DTV interference, and provides extremely easy operation, plus instantaneous channel selection. Up to 8 channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters include an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing 3 levels of diversity assurance: frequency, time, and space. First, Frequency Diversity sends the signal on 2 dynamically allocated frequencies, giving interference-free communication. Then, Time Diversity sends the signal in multiple time slots for the maximizing of multipath interference immunity. And finally, Space Diversity incorporates 2 antennas on each transmitter and receiver for signal integrity maximization.

System 10 features stackable, contemporary styling, is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak body-pack transmitters made for use with lavalier, headworn, and instrument microphones, along with electric guitars.

Audio-technica ATW-T1001 Unipak Transmitter Specifications:

  • RF Power Output: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Input Connections:
    • 4-pin Locking Connector:
      • Pin 1: GND
      • Pin 2: INST INPUT,
      • Pin 3: MIC INPUT
      • Pin 4: DC BIAS +9V
  • Batteries: (2) 1.5V AA (sold separately)
  • Battery Life: >7 hours (alkaline)
    Depending on battery type and use pattern
  • Dimensions (W x H x D): 2.76" x 4.21" x 0.98" (70.2 x 107.0 x 24.9mm)
  • Net Weight: 3.5 oz. (100 g) without batteries

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
