Audio-Technica ATW-1102 System 10 Wireless System with Handheld Microphone Transmitter

OUR PART #: ATW-1102 MFR #: ATW-1102

Copied to clipboard
Audio-Technica ATW-1102 System 10 Wireless System With Handheld Microphone Transmitter Image 1
Audio-Technica ATW-1102 System 10 Wireless System With Handheld Microphone Transmitter Image 2
Audio-Technica ATW-1102 System 10 Wireless System With Handheld Microphone Transmitter Image 3
B_MBa54eDF8?rel=0
3 Videos
Audio-Technica ATW-1102 System 10 Wireless System With Handheld Microphone Transmitter
Our Price: $349.95
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
More On Order! Due to high demand, this item has a backorder of over 21 days. Call our Sales Pros at 800-356-5844 for more information.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Enjoy high-fidelity digital wireless in an easily expandable system

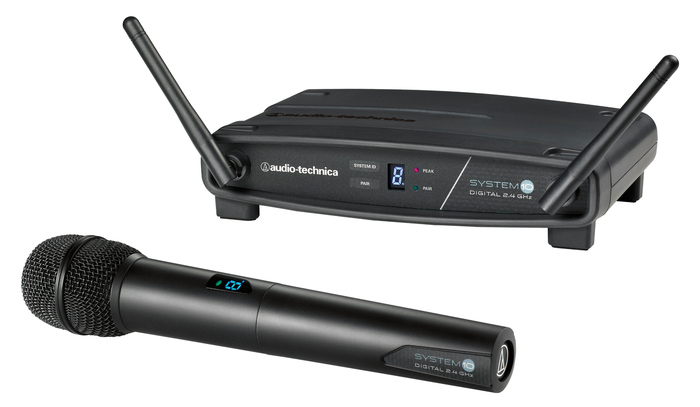

The ATW-1102 configuration features the ATW-R1100 receiver along with the ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex™ stand clamp.

System 10

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation; easy setup; and clear, natural sound quality. Operating in the 2.4GHz range, far from TV and DTV interference, this advanced package offers extremely easy operation and instantaneous channel selection. Up to 8 channels may be used together without any frequency coordination problems or group selection issues. The system's receivers and transmitters offer an easy-to-read digital ID display, and ensure clear communications by providing 3 levels of diversity assurance: frequency, time, and space.

  • Frequency Diversity sends the signal on 2 dynamically-allocated frequencies for interference-free communication.
  • Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.
  • Space Diversity uses 2 discreet antennas on each transmitter and receiver to maximize signal integrity.

Includes

  • ATW-R1100 Receiver with Power Supply
  • ATW-T1002 Handheld Transmitter
  • Quiet-Flex stand clamp

Features

  • Digital 24-bit / 48kHz wireless operation
  • 2.4GHz range completely free from TV interference
  • Frequency, Time and Space diversity assurance
  • Auto frequency selection
  • Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
  • The transmitter is powered by (2) AA batteries
  • The power/mute button is placed at the end of the microphone to maintain a clean, uncluttered appearance
  • Dual-color LED power/battery/mute indicator

Specifications

  • Overall System:
    • Operating Frequencies: 2.4GHz ISM band
    • Dynamic Range: > 109dB (A-weighted), typical
    • Total Harmonic Distortion: < 0.05% typical
    • Operating Range: 30m (100') typical, open range environment with no interfering signals
    • Operating Temperature Range: 32°F to 104°F (0°C to +40°C), note: battery performance may be reduced at very low temperatures
    • Frequency Response: 20Hz - 20kHz, depending on microphone type
    • Audio Sampling: 24-bit / 48kHz
  • ATW-R110 Receiver:
    • Receiving System: Diversity (frequency/time/space)
    • Maximum Output Level:
      • XLR, balanced: 0dBV
      • ¼" (6.3 mm), unbalanced: +6dBV
    • Power Supply: 100-240VAC (50 / 60Hz) to 12VDC, 0.5A (center positive) switched-mode external power supply
    • Dimensions (W x H x D): 7.48" x 1.82" x 5.06" (190 x 46.2 x 128.5mm)
    • Net Weight: 10.2oz. (290g)
    • Includes power supply
  • ATW-T1002 Handheld Mic:
    • RF Power Output: 10mW
    • Spurious Emissions: Compliant with federal and national regulations
    • Battery Type: (2) 1.5V AA
    • Battery Life: > 7 hours (alkaline), depending on battery type and use pattern
    • Dimensions (L x Dia): 10.03" x 1.97" (254.8 x 50mm)
    • Net Weight: 9.9oz. (280g), without batteries
  • Note: further information can be found within the "System 10 User Manual" located under the "Documentation" tab above.
