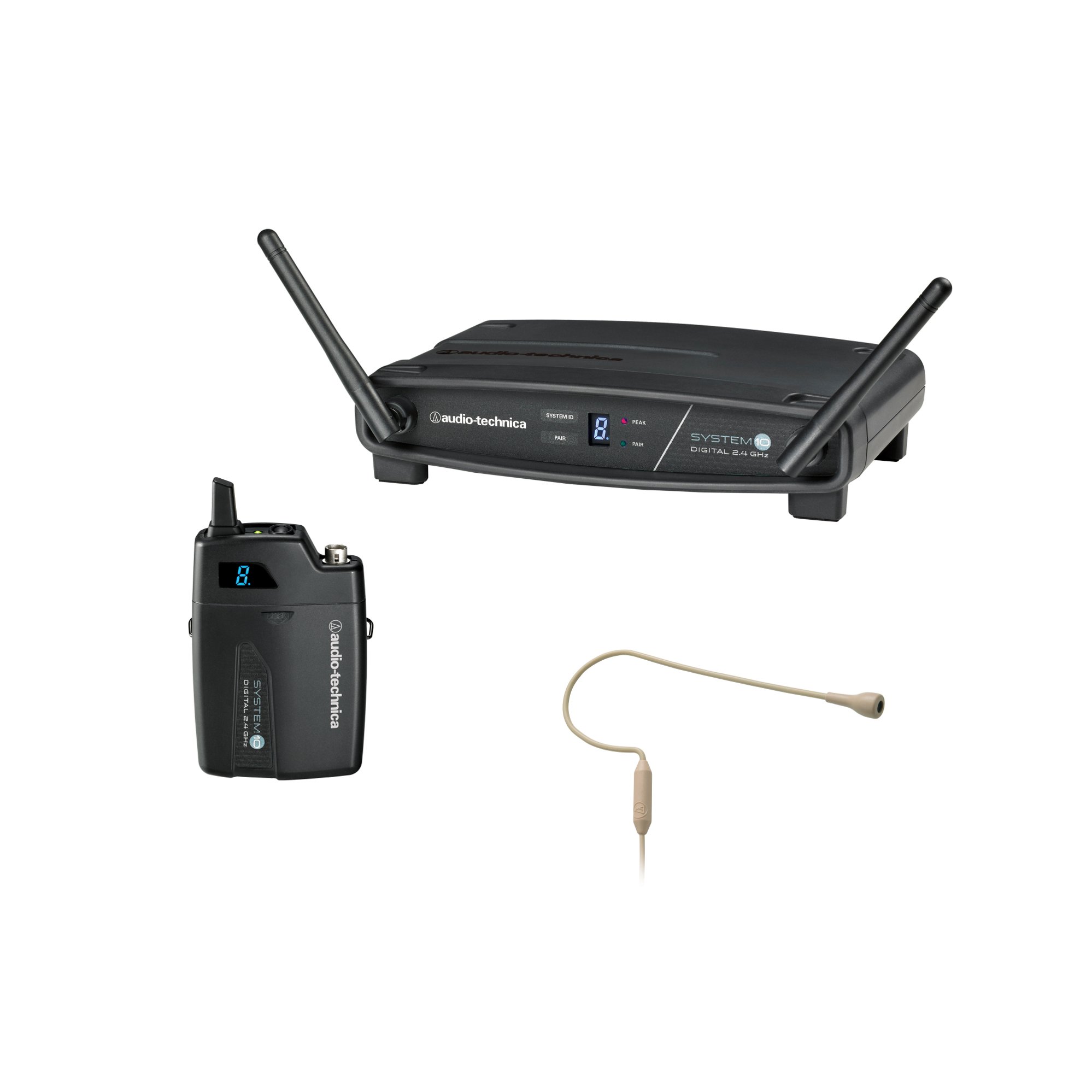

Audio-Technica ATW-1101/H92-TH
System 10 2.4 GHz Wireless System with Pro92cW-TH Headworn Microphone, Beige

OUR PART #:  ATW-1101/H92-TH

Audio-Technica's ATW-1101/H92-TH is part of their System 10 digital high-fidelity wireless series engineered to provide advanced 24-bit operation, easy setup, and clear...
Learn More
Our Price: $379.95

5.0 / 5

★★★★★ 1 Review. Write Yours
Audio-Technica ATW-1101/H92-TH
Qty:
In Stock

Related Products

Audio-Technica's ATW-1101/H92-TH is part of their System 10 digital high-fidelity wireless series engineered to provide advanced 24-bit operation, easy setup, and clear, natural sound quality for performing musicians, presenters, and more. This system operates in the 2.4 GHz range – far from TV and DTV interference – and offers extremely easy operation along with instantaneous channel selection. Up to 8 channels may be used together without any frequency coordination problems or group selection issues. Receivers and transmitters come equipped with an easy-to-read digital ID display.

System 10 wireless delivers clear communications by implementing 3 levels of signal diversity assurance: frequency, time, and space:

  • Frequency Diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication
  • Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference
  • Space Diversity uses 2 antennas on each transmitter and receiver to maximize signal integrity

Audio-Technica ATW-1101/H92-TH Includes:

  • ATW-R1100 receiver
  • ATW-T1001 UniPak® transmitter
  • PRO 92cW-TH headworn microphone (beige)
  • Power supply for receiver

Audio-Technica ATW-1101/H92-TH Features:

  • Digital 24-bit/48 kHz wireless operation for ultimatesound quality and dependable performance
  • 2.4 GHz range – completely free from TV interference
  • Three levels of diversity assurance: frequency, time, and space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, andset-up
  • State-of-the-art digital receiver for reliable performance
  • Balanced XLR and unbalanced 1/4” output jacks with level control

Audio-Technica ATW-1101/H92-TH Specifications:

Overall System

  • Operating Frequencies: 2.4 GHz ISM band
  • Dynamic Range: >109 dB (A-weighted), typical
  • Total Harmonic Distortion: <0.05% typical
  • Operating Range: 100ft (30m) typical
    • Open range environment with no interfering signals
  • Operating Temperature Range: 32°F to 104°F (0°C to +40°C)
    • Battery performance may be reduced at very low temperatures
  • Frequency Response: 20 Hz to 20 kHz
    • Depending on microphone type

ATW-R110 Receiver

  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level:
    • XLR, balanced: 0 dBV
    • 1/4" (6.3 mm), unbalanced: +6 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions (W x H x D): 7.48" x 1.82" x 5.06" (190 x 46.2 x 128.5mm)
  • Net Weight: 10.2 oz. (290 g)

ATW-T1001 UniPak® Transmitter

  • RF Output Power: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Input Connection: 4-pin Locking Connector:
    • Pin 1: GND
    • Pin 2: INST INPUT
    • Pin 3: MIC INPUT
    • Pin 4: DC BIAS +9V
  • Batteries (not included): Two 1.5V AA
  • Battery Life: >7 hours (alkaline)
    Depending on battery type and use pattern
  • Dimensions (W x H x D): 2.76"  x 4.21" x 0.98" (70.2 x 107.0 x 24.9mm)
  • Net Weight (without batteries): 3.5 oz. (100 g)

PRO-92cW-TH Headworn Microphone

  • Element: Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20-20,000 Hz
  • Open Circuit Sensitivity: –45 dB (5.6 mV) re 1V at 1 Pa*
  • Maximum Input Sound Level: 116 dB SPL, 1 kHz at 1% T.H.D.
  • Signal-to-Noise Ratio: 60 dB, 1 kHz at 1 Pa*
  • Current Consumption: 0.3 mA typical @ 5V
  • Voltage Range: 1.5-9V
  • Weight:
    • Mic & Boom: 0.14 oz. (4.0 g)
    • Mic, Boom, Connector, and Cable: 0.84 oz. (24.0 g)
  • Dimensions:
    • Microphone (L x Ø): 0.85" x 0.36" (21.7 x 9.2mm)
    • Boom (L x Ø): 4.33" x 0.09" (110.0 x 2.4mm)
  • Cable Length: 55" (1.4m)
  • Cable Termination: Terminated with locking 4-pin connector for use with A-T UniPak® body-pack transmitters

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
