Audio-Technica ATW-902
System 9 VHF Frequency-Agile Wireless Handheld Microphone System

OUR PART #:  ATW-902

Audio-Technica's ATW-902 is part of their wireless System 9 series.
Learn More
Our Price: $169.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica ATW-902
Qty:
In Stock

Similar Products

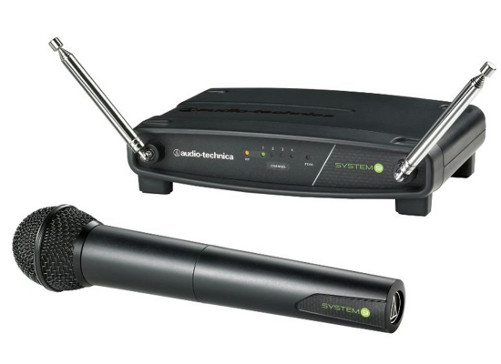

Audio-Technica's ATW-902 is part of their wireless System 9 series. This particular model comes with an ATW-R900 receiver and ATW-T902 handheld dynamic unidirectional microphone/transmitter. It also comes with the AT8456a Quiet-Flex™ stand clamp.

Audio-Technica System 9
A 4-channel frequency-agile wireless system, A-T's System 9 is engineered to provide rock-solid performance along with easy setup and clear, natural sound quality. It features sleek, contemporary styling with a stackable design. System 9 is available in handheld, headworn, guitar, lavalier, and body-pack configurations. It offers 4 compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).

Each System 9 setup includes the ATW-R900 receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900 is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900 also offers volume control along with AF Peak, RF and Power indicator lights.

Audio-Technica ATW-902 Includes:

  • ATW-R900 receiver
  • ATW-T902 handheld dynamic unidirectional microphone/transmitter
  • AT8456a Quiet-Flex™ stand clamp.

Audio-Technica ATW-902 Features:

  • Easy operation and clear, natural sound quality
  • 4 selectable frequency-coordinated VHF channels
  • Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
  • Reliable performance and durable construction
  • Advanced dipole antenna system for extended operating range

Audio-Technica ATW-902 Specifications:

  • Overall System:
    • Operating Frequencies: VHF high band, 169 MHz to 172 MHz
    • Modulation Mode: FM
    • Maximum Deviation: +/- 10 kHz
    • Dynamic Range:  = 90 dB (A-weighted), typical
    • Total Harmonic Distortion: <1% (at 1 kHz, +/- 10 kHz deviation)
    • Operating Range: 200 ft (60 m) typical
      • Open range environment with no interfering signals
    • Operating Temperature Range: 40°-110° F (4°-43° C)
      • Battery performance may be reduced at very low temperatures
    • Frequency Response: 80 Hz - 13 kHz
  • ATW-R900 Receiver:
    • Receiving System: Non-diversity, single-channel, dual antenna system
    • Image Rejection: 50 dB minimum
    • RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 Ohm termination)
    • Normal Output Level:
      • XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100 kOhm load)
      • 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100 kOhm load)
    • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
    • Dimensions (WxHxD): 7.48" x 1.82"  x 5.06" (190.0 x 46.2 x 128.5mm)
    • Net Weight: 12.0 oz (337 grams)
    • Accessory Included:  Power supply
  • ATW-T902 Handheld Transmitter:
    • RF Output Power: 10 mW
    • Spurious Emissions: Following federal and national regulations
    • Batteries (not included): (2) 1.5V AA
    • Battery Life: 8 hours (alkaline) Note: depends on battery type and use pattern
    • Dimensions:  9.91" (251.8 mm) long, 2.11" (53.5 mm) diameter
    • Net Weight (without batteries):  9.2 oz (260 grams)
