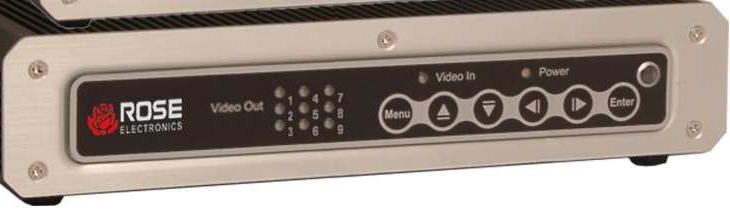

Rose Electronics VWL-B133FD
UltraVista LC 2 DVI Controller for 3x3 Video Wall, Single-Link DVI Input


Our Price: $4,682.81
List Price: $4,994.99
You save 6%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Rose Electronics' VWL-B133FD UltraVista LC is designed for those who have the need to produce a high quality, inexpensive 3x3 video wall.  The VWL-B133FD can be expanded to produce a 9x9 video array.

Connect the UltraVista LC directly to a laptop or desktop computer with a single DVI cable and instantly the hi-definition computer image is displayed on a large video wall.  No extra set-up is required because the UltraVista LC automatically detects the correct settings.

UltraVista LC requires a single link DVI input from the video source.  The video source is split directly over the display array with no image scaling or adjustments.  Control of the UltraVista LC can be performed remotely using the remote control or from a connected computer with an RS232 serial port.

The UltraVista LC can be automatically configured to produce three output modes; video wall mode, clone mode, and replication mode.  These modes are automatically configured based on the input resolution received from the video source.

  • The video wall mode accurately splits the input image over the display array.
  • The clone mode displays the same image on all monitors.
  • The replication mode shows the same image on each row of monitors.


  • Display and enlarge different video sources across any combination of output screens
  • DVI resolution output up to 1920 x 1200 (see data sheet for details)
  • Distortion-free display
  • Accepts HDTV, Analog and digital signals
  • 1 single-link DVI input / 9 single-link DVI outputs
  • Video input resolutions up to 3840 x 2400
  • Output resolutions up to 1920 x 1200
  • Depending on input resolution, the display mode is automatically set for:
  • Clone mode (Same image on all monitors)
  • Split mode (Same image on each row)
  • Video wall mode (Image split over all displays)
  • Easy adjustments for bezel compensation
  • Adjustments and control can be performed using a remote control or commands from a connected computer using the OSD functions
  • Compatible with most monitor that supports DVI input.  Displays can be LCD, HD Plasma, DLP, Projectors, or others.

NOTE: For more information, please consult the data sheet found under the Documents tab.
