Product Overview

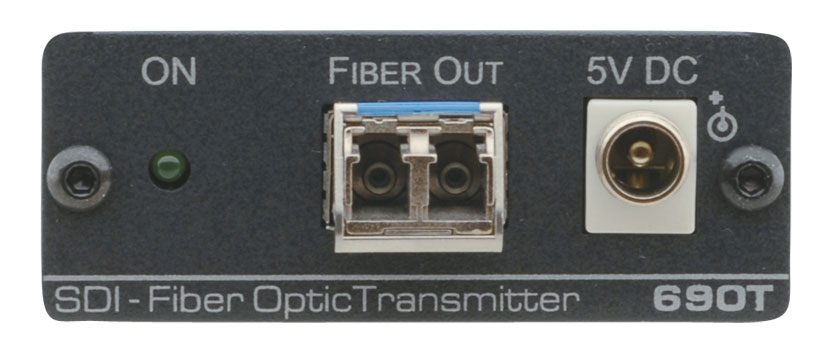

The Kramer 690T is a high-performance fiber optic transmitter for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS-88FO.
Features
- Max. Data Rate - 3Gbps.
- Inputs - 2 SDI on BNC connectors.
- Outputs - 2 single-mode fiber optic on LC connectors.
- HDTV Compatible.
- Multi-Standard Operation - SDI (SMPTE 259M and SMPTE344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M).
- Kramer Equalization & re-Klocking™ Technology -Rebuilds the digital signal to travel longer distances on the coax cable, 200m(HD-SDI) & 100m (3G HD-SDI).
- System Range - Up to 10km (6.2mi).
- Compact Kramer TOOLS™ - 4 units can be rack mounted side-by-side in a 1Urack space with the optional RK-4PT rack adapter.
Specifications
- Inputs: 2 SD/HD/3G HD-SDI on BNC connectors.
- Outputs: Dual single-mode fiber (9/125) over LCconnectors.
- Bandwidth: Supports up to 3Gbps bandwidth foreach input.
- Fiber Optic Extension: Up to 10km (>6.2 miles)for 3G-SDI.
- Input Cable Equalization: 200m for SDI, 100m for3G-SDI.
- Power Source: 5V DC, 480mA.
- Operating Temperature: 32° to 131°F (0° to+55°C)
- Storage Temperature: -49° to 162°F (-45° to+72°C)
- Humidity: 10% to 90%, RHL non-condensing.
- Dimensions (WxDxH): 2.4" x 2.0" x 0.9" (6.2cmx 5.2cm x 2.4cm)
- Weight: 0.31lbs (0.14kg) approx.
- Accessories: Power supply.
- Options: RK-4PT 19" rack adapter.
