MicW i436 Kit
Miniature Measurement Microphone Kit for iOS

OUR PART #:  I436-KIT

The i436 is a calibrated measurement microphone complying with the IEC 61672 Class 2 sound level meter standard.
Learn More
Our Price: $159.00
List Price: $179.00
You save 11%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MicW i436 Kit
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The i436 is a calibrated measurement microphone complying with the IEC 61672 Class 2 sound level meter standard. The sensitivity and frequency response of each microphone is individually calibrated at the factory before shipping. With the i436 and a dedicated App, you can turn your iPhone and iPad into a sound pressure level (SPL) meter or a real time analyzer (RTA) for time and frequency domain measurements. The i436 omnidirectional microphone houses outstanding performance in a small package. Durable and easily carried in your pocket, the i436 measures your vocals, instruments, and live sounds accurately without distortion, all on your mobile device.

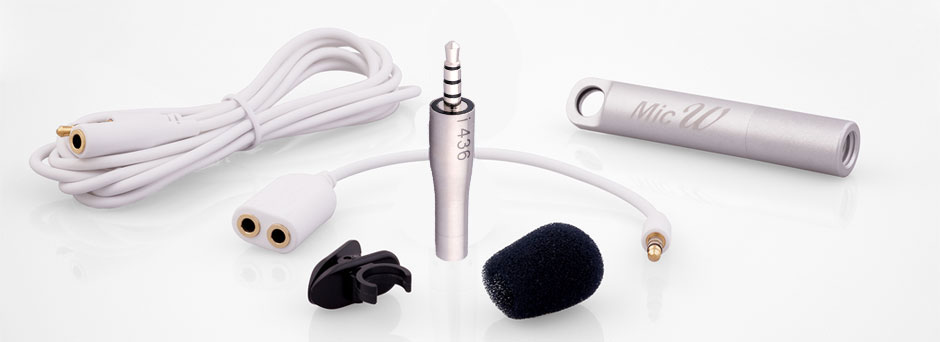

Type II Omni Measurement Microphone with accessory kit. Includes windscreen, 2m cable, split adapter (headphone/mic), clip and aluminum storage tube.

Specifications:

  • Type:  Electret Condenser
  • Capsule diameter:  7.0 mm (can be calibrated)
  • Principe of operation:  Pressure
  • Polar Pattern:  Omnidirectional
  • Sensitivity(┬▒3dB):  -44 dB (6.3mV/Pa)
  • Frequency Response:  20 Hz~20kHz
  • S/N ratio:  More than 62dB
  • Impedance:  Less than 2.2k
  • Power Source:  Plug-in power capability, Plug and play
  • Operating Temperature:  -20 Degrees C ~ +50 Degrees C
  • Length:  50mm
  • Weight:  8g
  • Connector:  3.5mm 4-Pole headset interface
