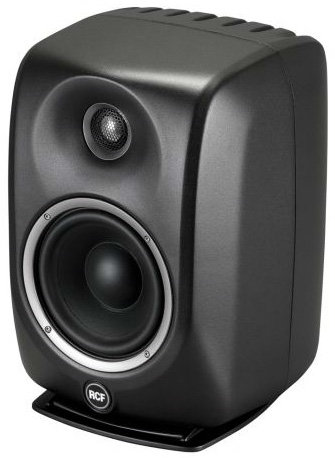

RCF MYTHO-6 6.5" Active Two-Way DSP Studio Monitor

RCF's MYTHO 6 is a two-way reference studio monitor that features a high-quality large metal dome tweeter for the best vocal reproduction and a 6" neodymium vented woofer with a large sized 51mm voice coil that guarantees very high energy for tight and controlled bass reproduction and perfect thermal stability with minimum power compression.

The magnetic circuit features a special air ventilation to reduce air compression, air noises and minimize distortion in large excursion situations. The MYTHO 6 is equipped with two separate amplifiers: 200W for the low frequencies and 100W for the highs. The design is a classic AB circuit, unparalleled for low distortion and natural sound. The signal processing is executed from a dedicated high quality DSP processor. It features a solid aluminum cabinet internally braced and reinforced to improve low frequencies behavior and reduce resonances.

Features

• True active 200W + 100W class AB design
• Dedicated DSP processing
• Fully-featured input board
• 6.5" neodymium ICC vented woofer
• 1" aluminum dome tweeter
• Constant directivity waveguide
• Die-cast aluminum cabinet
• Reflection-free cabinet design
• Low distortion reflex port

Acoustic Specifications

• Frequency Response (@-3dB): 40Hz - 20kHz
• Max SPL: 114dB
• Horizontal coverage angle: 110°
• Vertical coverage angle: 70°
• Compression Driver: 1" neo, metal dome
• Woofer: 6.5" neo, ICC technology
• Input/Output Section:
  • Input connectors: combo XLR/Jack
  • Input sensitivity: -6/+6dBu
• Processor Section:
  • Crossover frequencies: 1900Hz
  • Protections: thermal, excurs., rms
  • Limiter: soft limiter
  • Controls: bass tilt, roll-off, treeble tilt, desktop, DSP controlled

Amplifier Specifications

• Total power: 300W
• High frequencies: 100W
• Low frequencies: 200W
• Cooling: convection
• Connections: vde
• Cabinet:
  • Cabinet Material: die cast aluminum
  • Hardware: orientation adjustable stand

Physical Specifications

• Dimensions: 10.4" W x 14.5" H x 9.8" D (265 x 370 x 250mm)
• Net Weight: 23lbs (10.5kg)
