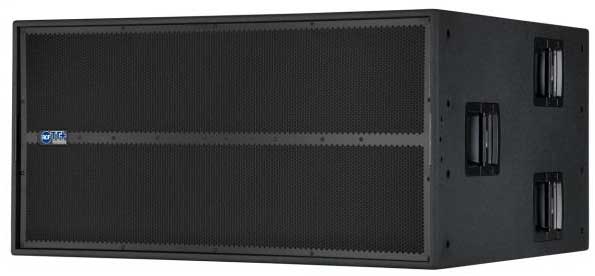

RCF TTS56-A
6800W 2x21" Active High-Power Subwoofer

OUR PART #  TTS56-A

Call for price! Not available online.
List Price: $12,935.00


RCF's TTS56-A is a high-power, high-output active subwoofer system that sets a new standard in the touring sound reinforcement.

The 21" neodymium design represents the result of many years dedicated in pioneering new solutions for the transducers technology.  The integration of the 6800 W, 2-channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Features:

  • 2x 3400 W digital amplifiers
  • 2x 21" high power neodymium woofers
  • 96 kHz, 32-bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Cardioid preset for groups
  • Tour-grade cabinet
  • Maximum output per size on market

Acoustical Specifications:

  • Frequency Response -3 dB: 30 Hz ÷ 100 kHz
  • Max SPL: 145 dB
  • Woofer: 2 x 21" neo, 4.5" voice coil

Input/Output Section:

  • Input connectors: XLR, Ethercon
  • Output connectors: XLR, Ethercon
  • Input sensitivity: -2 dBu / +10 dBu

Processor Section:

  • Protections: thermal, excurs., rms
  • Limiter: soft limiter
  • Controls: DSP controlled

Amplifier Specifications:

  • Total power: 6800 W
  • Low frequencies: 2 x 3400 W
  • Cooling: convection/forced
  • Connections: powercon

Cabinet:

  • Cabinet Material: baltic birch plywood
  • Hardware: 2 x steel bar for fork-lift transportation, 4 x 100 mm wheels
  • Handles: 6 side

Physical Specifications:

  • Dimensions: 46" W x 23.2" H x 38.9" D (1170 x 590 x 988 mm)
  • Net Weight: 235.5 lbs (115 kg)

RCF TTS56-A
6800W 2x21" Active High-Power Subwoofer

OUR PART #  TTS56-A

Product Videos:

Product Information:

RCF's TTS56-A is a high-power, high-output active subwoofer system that sets a new standard in the touring sound reinforcement.

The 21" neodymium design represents the result of many years dedicated in pioneering new solutions for the transducers technology.  The integration of the 6800 W, 2-channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Features:

  • 2x 3400 W digital amplifiers
  • 2x 21" high power neodymium woofers
  • 96 kHz, 32-bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Cardioid preset for groups
  • Tour-grade cabinet
  • Maximum output per size on market

Acoustical Specifications:

  • Frequency Response -3 dB: 30 Hz ÷ 100 kHz
  • Max SPL: 145 dB
  • Woofer: 2 x 21" neo, 4.5" voice coil

Input/Output Section:

  • Input connectors: XLR, Ethercon
  • Output connectors: XLR, Ethercon
  • Input sensitivity: -2 dBu / +10 dBu

Processor Section:

  • Protections: thermal, excurs., rms
  • Limiter: soft limiter
  • Controls: DSP controlled

Amplifier Specifications:

  • Total power: 6800 W
  • Low frequencies: 2 x 3400 W
  • Cooling: convection/forced
  • Connections: powercon

Cabinet:

  • Cabinet Material: baltic birch plywood
  • Hardware: 2 x steel bar for fork-lift transportation, 4 x 100 mm wheels
  • Handles: 6 side

Physical Specifications:

  • Dimensions: 46" W x 23.2" H x 38.9" D (1170 x 590 x 988 mm)
  • Net Weight: 235.5 lbs (115 kg)
