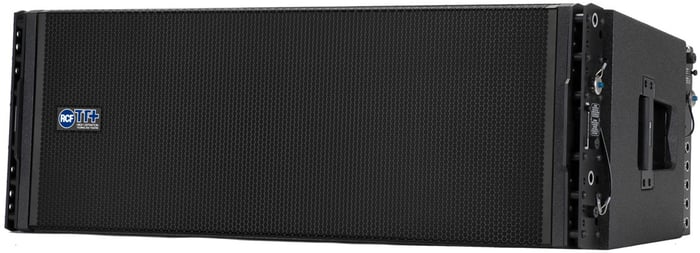

RCF TTL55-A
3500W 3-Way Active Line Array Module

OUR PART #:  TTL55-A

RCF's TTL55-A is a high power, three-way, active line array module engineered to deliver an incredible output for use in indoor or outdoor large spaces.
Learn More
TTL55-A - Rear View
TTL55-A - Side View
TTL55-A - Side View

Click a thumbnail to see more images. (5 total)

Call for price! Not available online.
List Price: $11,999.00

Similar Products

RCF's TTL55-A is a high power, three-way, active line array module engineered to deliver an incredible output for use in indoor or outdoor large spaces.  The system is designed to be easily scalable from few modules for medium and small theatres to full size arrays for very large outdoor stadia and public spaces.

The three new designs for the six neodymium transducers that power the system represent the result of many years dedicated in pioneering new solutions using the best materials available on the market.  The integration of the 3500 W four channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Features:

  • Tour-grade cabinet and mechanics
  • 3500 Watt, 4 way amplification
  • 6 high-power neodymium transducers
  • High-quality analog input board
  • 96 kHz, 32 bit DSP processing
  • Remote monitoring and control
  • Maximum output per size on the market

Specifications:

  • Acoustical
    • Frequency Response -3 dB: 50 Hz ÷ 20 kHz
    • Max SPL: 143 dB
    • Horizontal coverage angle: 90°
    • Vertical coverage angle: max 7°
    • Compression Driver: 3x1.5" neo, 2.5" voice coil
    • Midrange: 10" neo, 3.5" voice coil
    • Woofer: 2x12" neo, 4" voice coil
  • Input/Output Section:
    • Input connectors: XLR, Ethercon
    • Output connectors: XLR, Ethercon
    • Input sensitivity: 4 dBu
  • Processor Section:
    • Crossover frequencies: 320 Hz/1300 Hz
    • Protections: thermal, excurs., rms
    • Limiter: soft limiter
    • Controls: DSP controlled
  • Amplifier Specifications:
    • Total power: 3500 W
    • High frequencies: 500 W
    • Mid frequencies: 1000 W
    • Low frequencies: 2x1000 W
    • Cooling: convection/forced
    • Connections: powercon
  • Cabinet:
    • Cabinet Material: baltic birch plywood
    • Hardware: array fly-ware
    • Handles: 2 side
  • Physical Specifications:
    • Dimensions: 40" W x 15" H x 21.6" D (1020 x 380 x 550 mm)
    • Net Weight: 147.7 lbs (67 kg)
Suspending Bar for TTL55-A Line Array System
RCF FLY BAR TTL55 Suspending Bar for TTL55-A Line Array System
The RCF FLY BAR TTL55 is a suspending bar for the TTL55-A line array system and includes Pickup Point and Quick Lock pins. Multiple FLY BAR TTL55's can be used to suspend up to a total of 20 TTL55-A speakers.
