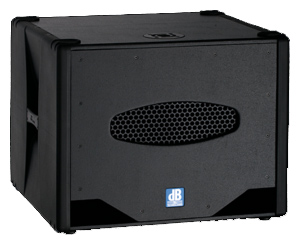

DB Technologies SUB-808D 18" Active Subwoofer, 800W

Sporting an 18” woofer loaded to a bandpass housing and an onboard 800W digital power amp, the SUB 808 D delivers a low-ranging bass foundation to provide precisely the low-end support 12“ and 15” speaker systems need. Such rigs are easily set up, connected and configured thanks to the built-in digital stereo x-over (DSP) with switchable cutoff frequency, phase reverse switch, and integrated control features. The H.E.T™ enclosure is a tough, road-worthy housing that keeps the components inside well protected.

Specifications:

• Speaker Type: Active Bandpass Subwoofer
• Acoustical Data
  • Frequency Response [-10dB]: 30 - 150 Hz
  • Max SPL: 130 dB
  • Directivity: omnidirectional
  • LF: 18 "
• Amplifier
  • Amp Class: Class D
  • Power PRG: 800 W
  • Cooling: Convection
• Processor
  • Controller: DSP 24 bit/ 48 kHz
  • Phase: 0, 180 °
  • Limiter: Dual Active Limiter
  • Crossover Frequency LF-MF: 2 setups Hz
  • Slope LF-MF: 24 dB/Octave
• Input Section
  • Signal Input: 2x XLR
  • Signal Output: 2x XLR Link Out/X-Over Out
  • Power Socket: VDE
• Mechanics
  • Housing: H.E.T
  • Housing Design: Square
  • Color: Black
  • Surface Texture: Textured acrylic laquer
  • Castors: No
  • Handles: 1x per side
  • Pole Mount: 1x 36mm on top
  • Front Grille: Wooden
  • Width: 640 mm (25.6 in)
  • Height: 520 mm (20.8 in)
  • Depth: 615 mm (24.6 in)
  • Weight: 34,8 kg (74.96 lbs)
