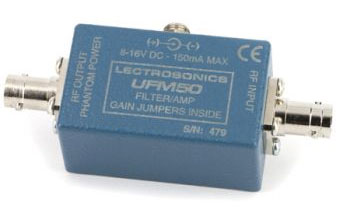

Lectrosonics UFM50
50 Mhz UHF Filter/Amplifier Module (Block 25-26)

OUR PART #:  UFM50

The UFM50 provides a unique, high performance solution for antenna systems requiring long cable runs or distribution to multiple receivers or locations.
Learn More
Selected Model Price: $413.52
List Price: $490.00
Save up to 16%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics UFM50
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The UFM50 provides a unique, high performance solution for antenna systems requiring long cable runs or distribution to multiple receivers or locations. The unit can be used to apply RF gain at the antenna ahead of a long run of coaxial cable to compensate for signal loss through the cable. A compact, high performance multicoupler can also be configured using the UFM50 ahead of an RF splitter to offset the loss through the splitter.

The UFM50 design places RF filtering before gain to minimize intermodulation (IM) products and prevent overload. Two transmission line ceramic resonators at the input provide filtering with a 50 MHz bandwidth. Following the filters, 12dB of gain is applied with a high quality GasFET RF amplifier with an excellent +41dBm IP3. The result is outstanding RF performance without IM or overload problems.   A switching regulator is used in the power supply to control current consumption over an input voltage range of 8 to 16 volts. The regulator maintains low current consumption and low heat dissipation which is especially useful in portable audio mixing common in field production and ENG.  The UFM50 can be powered from external DC or via phantom power through a coaxial cable connected to the UMC16A Multicoupler.  The housing is constructed of cast aluminum with a brushed aluminum cover plate. Two rugged BNC connectors and a threaded, locking power jack provide secure connections for rugged field conditions and for long-term installations.

Features:

  • RF filtering before gain
  • 50 MHz passband on center frequencies from 560 to 865 MHz
  • Ceramic resonator filters
  • GasFET RF amplifier
  • +41dBm 3rd Order Intercept
  • Switching regulator for 8-16V power at constant power dissipation to minimize heat at high voltage
  • Jumperable attenuators for +5dB, +8dB and +12dB total gain
  • Cast aluminum housing
  • External power or phantom power at output jack from UMC16A Multicoupler
  • Includes 6 ft DC locking style mating connector assembly for powering

Specifications:

  • Third Order Intercept: +27 dBm @ input (+41 dBm output)
  • Inputs: RF In - BNC
  • DC In - 2.1 mm locking power jack
  • Output: RF out - BNC (and phantom power in)
  • Freq Range: 560-865 MHz, factory set. See unit for frequency range of your particular unit.
  • Filter Bandwidth: 50 MHz, factory set.
  • RF Gain:
    -  +12 dB with 0dB attenuator
    -  +8 dB with 4dB attenuator
    -  +5 dB with 7dB attenuator
  • Power Requirements: 8V DC (130 mA) up to 16 volts DC (70 mA) at the DC input jack; Auto reset circuit breaker
  • Phantom Power: DC voltage supplied by UMC16A BNC input jack or BIAS-T power inserter
  • Power Consumption: 1.075 Watts nominal (switching regulator)
  • Dimensions: 2.26 x 1.39 x 1.14 inches (not including BNCs)
  • Weight: 3.3 oz
