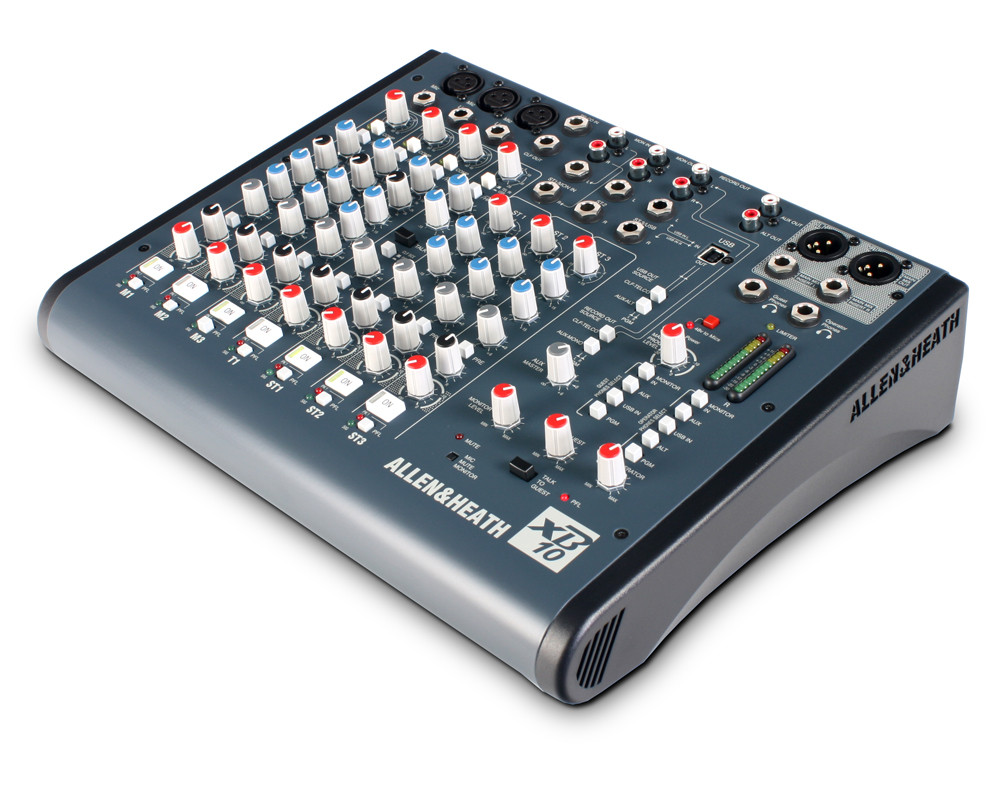

Allen & Heath XB10
10 Channel Compact Broadcast Mixer Console

OUR PART #:  XB10

The Allen & Heath XB-10 is perfect for small radio or internet broadcast studios, college and university radio stations, podcasting, content creation and more.
Learn More
Our Price: $799.00
List Price: $899.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen & Heath XB10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Allen & Heath XB-10 is perfect for small radio or internet broadcast studios, college and university radio stations, podcasting, content creation and more.

Despite its tiny footprint, XB-10 is packed with the kinds of specialised broadcast features that normally come at a much higher price. Radio-friendly tools include a telephone communication (telco) channel, mic channel ON switch sensing, stereo channel start/cue outputs for CD deck transport control and automatic muting of speaker outputs. A separate monitor mix can be created for operator and guest or presenter, and the operator can speak off-air to the studio or telephone callers using the ‘Talk’ feature.

XB-10's preamps use low noise discrete transistor circuitry to achieve high gain and excellent linearity. Each mic channel comes equipped with our innovative CompACT compressor to keep the dynamic range of a presenter microphone under control. A variable limiter on the main output ensures that the final mix to air does not saturate expensive broadcast equipment.

The plug-n-play USB connection can be used for VoIP telephone calls, recording program material, playing jingles and more.

Allen & Heath XB-10 Features:

  • USB : XB-10 comes with a full duplex USB soundcard built in and many useful routing options for recording and broadcast applications.
  • MusiQ: XB-10 features a responsive 3-band, swept mid-frequency EQ design which utilises MusiQ with optimized slope for a variety of sources.
  • Output Limiter: A variable limiter ensures the level does not exceed a pre-defined level. Back panel option switches allow the limiter to be bypassed. A trim pot is used to vary the threshold and an LED on the front panel indicates when the limiter has triggered.
  • CompACT Compressor: XB-10 features the ComPACT compressor on each of its mic channels. CompACT (Adaptive Compression Technology) is a program-dependent audio leveller. Unlike other compressors, which are effective only at reducing loud sounds, CompACT combines both downward and upward compression with peak limiting. Low level signals aregiven a gain boost, mid level signals are mildly compressed with a soft knee response, and high level signals are limited.
  • 3 mic/line and 3 stereo inputs
  • Telco channel with optional USB routing for VoIP
  • CompACT compressors on mic channels
  • ON switch logic on mic and telco channels
  • Start/cue logic outputs on stereo channels
  • Separate headphones mix and outputs
  • Auto mutes on control room outputs
  • Remote mute facility on mic channels
  • Responsive 3-band, swept mid EQ with MusiQ
  • Configurable USB stereo audio in/out
  • XLR main outputs with inserts and variable limiter
  • Aux / Alt bus for external processing, recording or auditioning

Allen & Heath XB-10 Specifications:

  • Input
    • Mono channel Mic input (XLR): -10 to -60dBu for nominal (+11dBu in max)
    • Mono channel Line input (TRS jack socket): +10 to -40 dBu (+30 dBu maximum)
    • Stereo Input (TRS jack sockets): 0dBu nominal (Gain = Off to +15dB)
    • Stereo Input (RCA phono sockets): 0dBu nominal (Gain = Off to +15 dB)
  • Output
    • PGM L & R outputs (XLR): +4 dBu nominal, +25dBu maximum
    • PGM L & R inserts (TRS jack sockets): -2dBu nominal, +21 dBu maximum
    • Aux Output (RCA phon socket): 0dBu nominal, +21 dBu maximum
    • Alt Output (RCA phono sockets): 0dBu nominal, +21 dBu maximum
    • Rec Outputs (RCA phono sockets): 0dBu, +21 dBu maximum
  • USB Audio CODEC (Coder/ Decoder)
    • USB Audio In/ Out: USB 1.1 compliant 16-bit
    • Sample Rate: 32, 44.1 or 48kHz
  • THD+n
    • Mic In to PGM L/R Out, 15dB gain, 1kHz, +10dBu out: 0.002%
  • Noise
    • Mic Pre EIN @ max gain 150R input Z 22-22Khz: -126dBu
    • PGM out, PGM fader @ nominal 22-22kHz: -103dBu
    • Aux out, Alt out, Rec out @ nominal 22-22khz: <-93dBu
  • Headroom
    • Analog Headroom from nominal (Ovu) Outputs: 21dB
    • Analog Headroom from nominal (0Vu) Mix point: 24dB
    • USB in & out headroom from nominal (OVu): 14dB
  • Frequency Response
    • Mic in to PGM L/R Out, 30dB gain: +0.5/-1dB 10Hz to 30kHz
    • Line In to PGM L/R out 0dB gain: +0.5/-1dB 10Hz to 20kHz
    • Stereo in to PGM L/R out: _0.5/-1dB 10Hz to 30kHz
