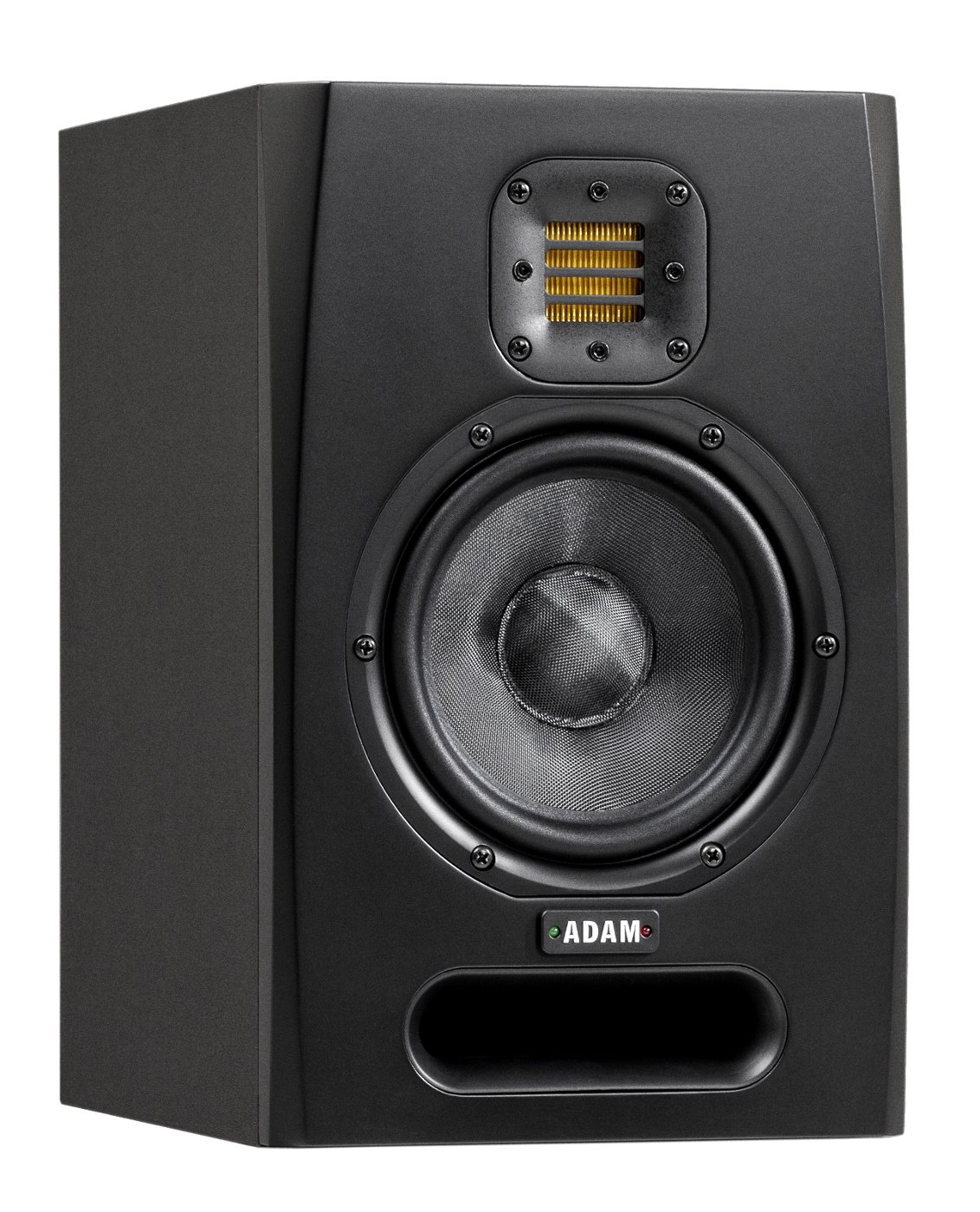

ADAM Audio F5
5" Near-Field 2-Way Studio Monitor

OUR PART #:

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

ADAM Audio's F5 offers all the features you want to see in a professional studio monitor: a broad frequency range (52Hz - 50kHz) plus comprehensive control.The monitor is equipped with a Room Equalizer for high (> 5kHz) and low (< 300 Hz) frequencies and an overall volume control on the rear panel.  A high pass filter (to be used in conjunction with a subwoofer) and XLR/TRS/RCA inputs complete the professional functions of the F5.

The F5 is driven by two A/B class amplifiers with 50W RMS / 70W Music.  This helps the monitor to provide a vibrant, deep bass and a maximum SPL of 106dB per pair.  The reproduction of dynamically challenging tracks should not be a problem with this powerhouse.

ADAM Audio F5 Specifications:

  • Mid-Woofer:
    • Number: 1
    • Basket: 5" (127 mm)
    • Voice Coil: 1" (25 mm)
    • Cone Material: Glass fiber/paper
  • Tweeter
    • Number: 1
    • Type: ART
    • Velocity Transform Ratio: 4:1
  • Built-in Amplifiers:
    • Mid-Woofer: 1
    • Type: A/B
    • Amp. Power RMS / Music: 25 W / 35 W
    • Tweeter: 1
    • Type: A/B
    • Amp. Power RMS / Music: 25 W / 35 W
  • Control Panel
    • Input Sensitivity: -infinity to +6 dB
    • High Shelf EQ: > 5 kHz ±6 dB
    • Low Shelf EQ: < 300 Hz ±6 dB
  • Input Connectors
    • Analog: XLR / RCA
  • General Data:
    • Frequency Response: 52 Hz - 50 kHz
    • Max. Peak: > or = 110 dB
    • Crossover Frequencies: 2900 Hz
    • Weight: 15 lbs (6.8 kg)
    • Magnetically Shielded: No
    • Dimensions: 11.5" H x 7.5" W x 9" D (290 x 185 x 230 mm)
    • Warranty: 2 Years
for A3X/A5X/F5/F7 Monitor Speakers
ADAM Audio Wall Mount for A3X/A5X/F5/F7 Monitor Speakers
The ADAM Audio Wall Mount is an adjustable steel wall mount bracket that is designed for use with the A3X, A5X, F5, and F7 monitor speakers.ADAM Audio Wall Mount Specifications: Angle of inclination: 0° to 15°Bearing plate: 1.96" x ...
