RapcoHorizon Music SN3IJIS
3-Pair Audio Snake Cable

OUR PART #:  SN3IJIS-BY-FOOT

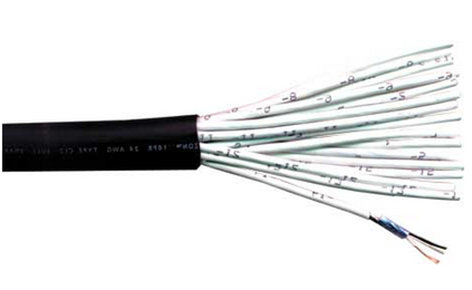

The RapcoHorizon SN3IJIS is a 24 AWG stranded bare copper, polypropylene insulated, individually shielded, individually jacketed, overall CL2 PVC jacket, multipair snake wire.
Learn More
Our Price: $1.04
Write the first review.
RapcoHorizon Music SN3IJIS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The RapcoHorizon SN3IJIS is a 24 AWG stranded bare copper, polypropylene insulated, individually shielded, individually jacketed, overall CL2 PVC jacket, multipair snake wire.

RapcoHorizon SN3IJIS Specifications:

  • 3-pair
  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • O.D.: 0.595"
  • Lay length: 7"
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60O nominal
  • D.C. Resistance @ 20°C: 24.5O/1000 ft.

NOTE: This item is Sold by the Foot
