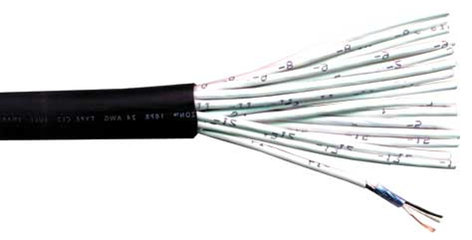

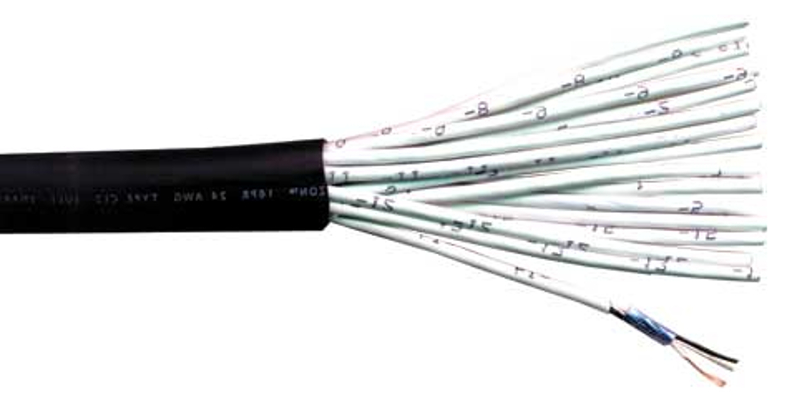

RapcoHorizon Music SN16IJIS
16-Pair Audio Snake Cable, Sold by the Foot

OUR PART #:  SN16IJIS-BY-FOOT

The RapcoHorizon SN16IJIS is a multipair snake wire that features 24 AWG stranded bare copper, polypropylene insulated, individually shielded...
Learn More
Our Price: $3.38
List Price: $5.07
You save 33%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RapcoHorizon Music SN16IJIS
Qty:
Similar Products

The RapcoHorizon SN16IJIS is a multipair snake wire that features 24 AWG stranded bare copper, polypropylene insulated, individually shielded, individually jacketed and overall CL2 PVC jacket.

RapcoHorizon SN16IJIS Specifications:

  • 16-pair
  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • O.D.: 0.595"
  • Lay length: 7"
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60O nominal
  • D.C. Resistance @ 20°C: 24.5O/1000 ft.
