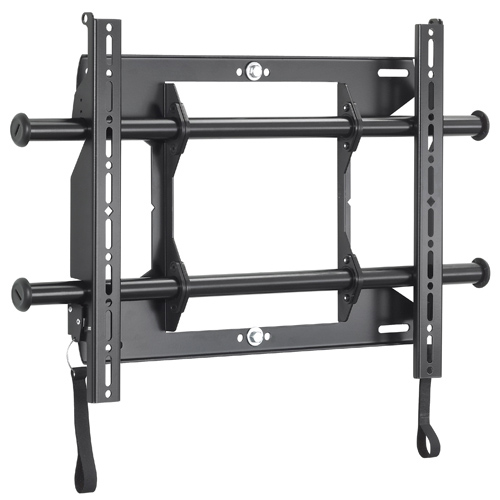

Chief Manufacturing MSA3044
Medium Fusion™ Fixed Wall Mount

OUR PART #:  MSA3044

The installer-inspired fixed mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for medium flat panel screens.
Learn More

Add to Cart to See Price

Chief Manufacturing MSA3044
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The installer-inspired fixed mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for medium flat panel screens.

Features:

  • Centerless Shift provides up to 14.5" (368 mm) of post-installation lateral shift - 7.25" (184 mm) left/right of uprights - for limitless centering
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options, including single or dual stud mounting on 16" centers
  • Great solution for quickly installing multiple screens
  • Provides integrated security, just add a padlock
  • Ships with a custom hardware kit
  • Steel stud mounting possible with series PAC115 and using 2 studs only

Specifications:

  • Certifications:  UL Listed
  • Color:  Black
  • Lateral Shift:  14.5" (368.3mm)
  • Minimum Depth:  1.98" (50.3mm)
  • Mounting Pattern Compatibility (Universal Versions):  100 x 100mm - 650 x 400mm
  • Notes:  Steel stud mounting possible with series PAC115 and using 2 studs only
  • Orientation:  Landscape
  • Overall Dimensions (H x W x D):  13.5" x 25.4" x 2.0" (343 x 646 x 50mm)
  • Solution Type:  Custom
  • Typical Screen Sizes:  26 - 47"
  • Wall Stud Compatibility (inches):  Single Stud, 16
  • Weight Capacity:  125 lbs (56.7kg)
