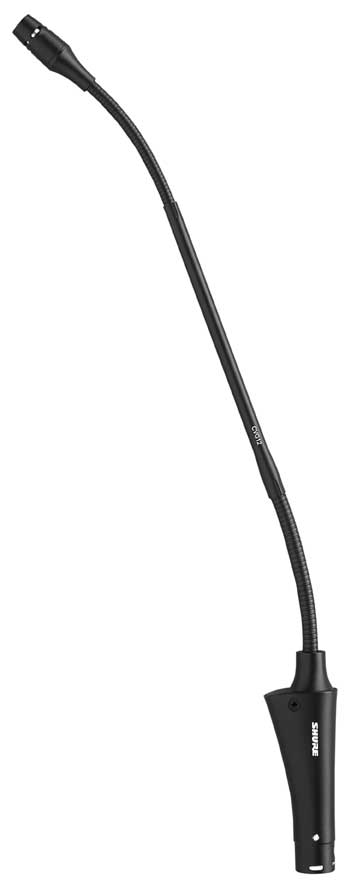

Shure CVG12-B/C 12" Gooseneck Condenser Microphone with In-Line Preamp

The Shure Centraverse CVG12-B/C professional gooseneck electret condenser microphone is designed for use in general installed sound reinforcement applications. Designed with dual gooseneck sections for full articulation, the CVG12 and CVG18 provide scalable, best-in-class performance in a wide variety of locations, including podiums and desktops.

Shure Centraverse Installed Sound Microphones deliver high quality, reliable audio no matter what the application. From meeting rooms to houses of worship, podiums to desktops, Centraverse microphones come complete with all you need to ensure a quick and efficient sound solution, every time.

All Centraverse models are equipped with Commshield® RF Filtering Technology

Includes

• CVG12-B/C Gooseneck Microphone with Inline Preamp
• Windscreen (black)
• Mounting Flange

Features

• Cardioid polar pattern with tailored response for speech
• Dual-section gooseneck enables ease of positioning and placement options
• 12" (30.4 cm) gooseneck length
• Black color
• Includes inline preamp
• Commshield® interference immunity
  • Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.)
  • High resistance to intense nearby radio signals
• Superior Shure design and rugged, dependable construction

Specifications

• Polar Pattern: Cardioid
• Cartridge Type: Electret Condenser
• Frequency Response: 70 Hz – 16 kHz
• Output Impedance: 180 Ohms
• Sensitivity open circuit voltage, @ 1 kHz, typical: –33 dBV/Pa[1] (22 mV)
• Maximum SPL 1 kHz, at 1% THD: 120 dB SPL
• Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz: 67 dB
• Dynamic Range: 93 dB
• Self Noise equivalent SPL, A-weighted, typical: 27 dB SPL
• Preamplifier Output Clipping Level (@ 1 kHz, at 1% THD): -7 dBV
• Common Mode Rejection 10 Hz to 100 kHz: > 45 dB
• Operating Temperature: –18 to 57°C (0 to 135°F)
• Power Requirements: 11–52 V DC, 2.0 mA
• Operating Temperature: –18 to 57°C (0 to 135°F)
• Weight: 6.3 oz.
