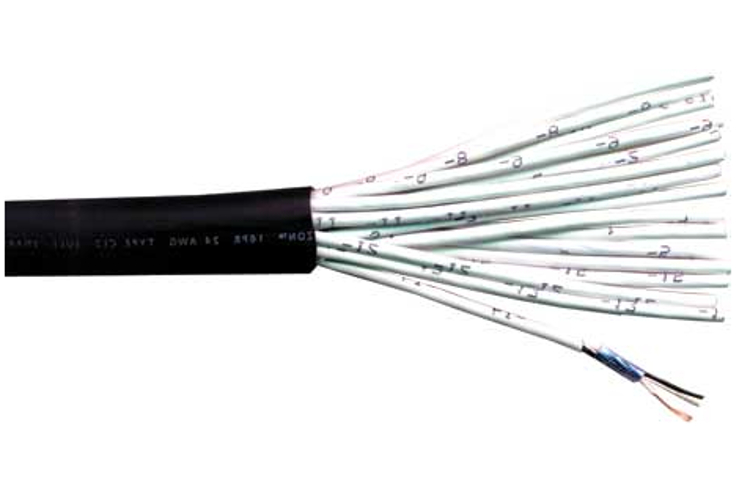

RapcoHorizon Music SN12IJIS [PRICED PER FOOT]
12-Pair Audio Snake Cable

OUR PART #:  SN12IJIS-BY-THE-FOOT

The RapcoHorizon SN12IJIS is a multipair snake wire that features 24 AWG stranded bare copper, polypropylene insulated, individually shielded...
Learn More
Our Price: $2.52
Write the first review.

This product must be purchased in multiples of 10

RapcoHorizon Music SN12IJIS [PRICED PER FOOT]
Qty:
In Stock

Related Products

The RapcoHorizon SN12IJIS is a multipair snake wire that features 24 AWG stranded bare copper, polypropylene insulated, individually shielded, individually jacketed and overall CL2 PVC jacket.

RapcoHorizon SN12IJIS Specifications:

  • 12-pair
  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • O.D.: 0.595"
  • Lay length: 7"
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60O nominal
  • D.C. Resistance @ 20°C: 24.5O/1000 ft.
