Philips Color Kinetics 116-000027-01
ColorBurst 6 RGB LED Fixture in Black with 21° Frosted Lens

OUR PART #  116-000027-01

Our Price: $431.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

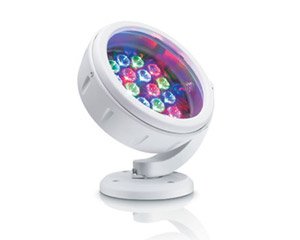

NOTE: Philips Color Kinetics ColorBurst 6 is shown above in white, but comes in BLACK.

Philips Color Kinetics' ColorBurst 6 combines the classical look of a round, 6" (152 mm) spotlight with all the benefits of intelligent LED technology. Enclosed in a rugged, die-cast aluminum housing, this compact spotlighting and wall-washing fixture projects rich, saturated colors and color-changing effects both indoors and outdoors.  Enclosed wiring gives ColorBurst 6 a neat appearance and optimum positioning. The housing is equipped with a three-screw accessory ring to affix spread lenses, egg-crate louvers, and other attachments.

Philips Color Kinetics ColorBurst 6 Features:

  • Outputs over 500 lumens while consuming just 25 W at full intensity.
  • A 350° locking base swivel and 350° locking fixture rotation offer aversatile range of light positioning.
  • Designed specifically for ColorBurst 6, accessories provide additionaloptions for controlling and dispersing light. Top hats, half top hats,egg crate louvers, barn doors, and glass spread lenses attach easily to anintegrated accessory attachment ring on the ColorBurst 6 housing.
  • Versatile mounting options - ColorBurst 6 mounts to standard junction boxes or to a specially designed mounting base, available separately. With the optional mounting base, ColorBurst 6 can be freestanding on a floor.  Each mounting base comes with a native 60 ft (18.3 m) power and data cable to minimize wiring.

Philips Color Kinetics ColorBurst 6 Specifications:

  • Output:
    • Beam Angle: 21°
    • Lumens*: 517 (*Lumen measurement complies with IES LM-79-08)
    • LED Channels: Red / Green / Blue
    • Mixing Distance: 6" (152 mm) to uniform light
    • Lumen Maintenance†: 50,000+ hours L50 @ 50° C (full output)
      †L50 = 50% lumen maintenance (when light output drops below 50% of initial output). Ambient luminaire temperatures specified.Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.  Refer to http://www.philipscolorkinetics.com/support/appnotes/lm-80-08.pdf for more information.
  • Electrical:
    • Input Voltage: 24 VDC via PDS-150e or PDS-60
    • Power Consumption: 25 W maximum at full output, steady state
  • Control:
    • Interface: PDS-150e 24V (DMX / Ethernet), PDS-60 24V(Pre-programmed, or DMX / Ethernet)
    • Control System: Philips full range of controllers, including ColorDial Pro, Light System Manager, and iPlayer 3, or third-party controllers
  • Physical:
    • Dimensions (HxWxD): 8.2" x 8.4" x 2.4" (208 x 213 x 61mm)
    • Weight: 4.1 lbs (1.9 kg)
    • Housing: Die-cast aluminium, black or white finish
    • Lens: Frosted tempered glass
    • Fixture Connections: Flying leads on fixture, Optional 60 ft (18.3 m) power / data cable with Mounting Base
    • Temperature Ranges:
      • Operating: 40° – 122° F (-40° – 50° C)
      • Startup: 4° – 122° F (-20° – 50° C)
      • Storage: 40° – 176° F (-40° – 80°C)
      • Humidity: 0 – 95%, non-condensing
      • Maximum Fixtures PerPower / Data Supply: PDS-150e 24V: 6 (3 per port), PDS-60 24V: 2 (1 per port)
  • Certification and Safety:
    • Certification: UL / cUL, CE, PSE, C-Tick,SAA
    • Environment: Dry / Damp / Wet Location, IP66

Philips Color Kinetics 116-000027-01
ColorBurst 6 RGB LED Fixture in Black with 21° Frosted Lens

OUR PART #  116-000027-01

Product Information:

NOTE: Philips Color Kinetics ColorBurst 6 is shown above in white, but comes in BLACK.

Philips Color Kinetics' ColorBurst 6 combines the classical look of a round, 6" (152 mm) spotlight with all the benefits of intelligent LED technology. Enclosed in a rugged, die-cast aluminum housing, this compact spotlighting and wall-washing fixture projects rich, saturated colors and color-changing effects both indoors and outdoors.  Enclosed wiring gives ColorBurst 6 a neat appearance and optimum positioning. The housing is equipped with a three-screw accessory ring to affix spread lenses, egg-crate louvers, and other attachments.

Philips Color Kinetics ColorBurst 6 Features:

  • Outputs over 500 lumens while consuming just 25 W at full intensity.
  • A 350° locking base swivel and 350° locking fixture rotation offer aversatile range of light positioning.
  • Designed specifically for ColorBurst 6, accessories provide additionaloptions for controlling and dispersing light. Top hats, half top hats,egg crate louvers, barn doors, and glass spread lenses attach easily to anintegrated accessory attachment ring on the ColorBurst 6 housing.
  • Versatile mounting options - ColorBurst 6 mounts to standard junction boxes or to a specially designed mounting base, available separately. With the optional mounting base, ColorBurst 6 can be freestanding on a floor.  Each mounting base comes with a native 60 ft (18.3 m) power and data cable to minimize wiring.

Philips Color Kinetics ColorBurst 6 Specifications:

  • Output:
    • Beam Angle: 21°
    • Lumens*: 517 (*Lumen measurement complies with IES LM-79-08)
    • LED Channels: Red / Green / Blue
    • Mixing Distance: 6" (152 mm) to uniform light
    • Lumen Maintenance†: 50,000+ hours L50 @ 50° C (full output)
      †L50 = 50% lumen maintenance (when light output drops below 50% of initial output). Ambient luminaire temperatures specified.Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.  Refer to http://www.philipscolorkinetics.com/support/appnotes/lm-80-08.pdf for more information.
  • Electrical:
    • Input Voltage: 24 VDC via PDS-150e or PDS-60
    • Power Consumption: 25 W maximum at full output, steady state
  • Control:
    • Interface: PDS-150e 24V (DMX / Ethernet), PDS-60 24V(Pre-programmed, or DMX / Ethernet)
    • Control System: Philips full range of controllers, including ColorDial Pro, Light System Manager, and iPlayer 3, or third-party controllers
  • Physical:
    • Dimensions (HxWxD): 8.2" x 8.4" x 2.4" (208 x 213 x 61mm)
    • Weight: 4.1 lbs (1.9 kg)
    • Housing: Die-cast aluminium, black or white finish
    • Lens: Frosted tempered glass
    • Fixture Connections: Flying leads on fixture, Optional 60 ft (18.3 m) power / data cable with Mounting Base
    • Temperature Ranges:
      • Operating: 40° – 122° F (-40° – 50° C)
      • Startup: 4° – 122° F (-20° – 50° C)
      • Storage: 40° – 176° F (-40° – 80°C)
      • Humidity: 0 – 95%, non-condensing
      • Maximum Fixtures PerPower / Data Supply: PDS-150e 24V: 6 (3 per port), PDS-60 24V: 2 (1 per port)
  • Certification and Safety:
    • Certification: UL / cUL, CE, PSE, C-Tick,SAA
    • Environment: Dry / Damp / Wet Location, IP66
