Product Overview

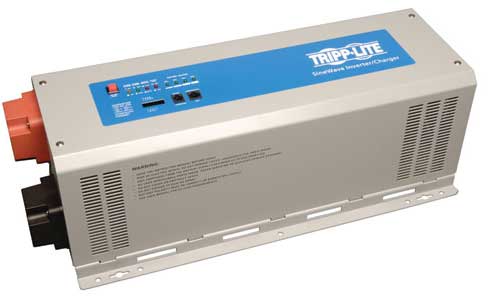

Looking to reproduce wall power from a battery source without any power interference? Are you using a vehicle battery or separate battery bank to supply power in remote locations or work environments where wall power / shore power is not available? With reliable 120V AC power, Pure Sine Wave output and the ability to charge batteries, the Tripp Lite APS2012SW is your answer.
Provide Pure Sine Wave power in your fleet vehicle, work truck or utility vehicle with the Tripp Lite APS2012SW. This inverter/charger supplies 2000 watts of continuous 120V AC power. The reliable large transformer design and frequency control powers resistive loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TV’s, Computers, power tool and battery chargers. The 3-stage charging system will properly charge and maintenance your vehicle battery or separate battery bank. The charge rate is selectable so you can use a variety of battery sizes as well as multiple batteries to fit your run time requirements.
Applications:
Versatile inverter/charger system with seamless transfer switching serves as an automotive inverter for over-the-road trucking, conversion vans and fleet service vehicles; a standalone alternative power source for off-grid, alternative energy or export applications and as an uninterruptible power supply (UPS) for items compatible with a 8-12 millisecond transfer time.
Features:
- Pure sine wave output
- Continuous output inverter and high power battery charger
- Quiet, high efficiency operation, high surge capacity and low idle current
- Supply energy to various loads such as resistive load
- Seamless transfer switching
- Load sensing adjustable
- Unlimited back up time with user supplied batteries
Specifications:
- OUTPUT
- Frequency compatibility 50 / 60 Hz
- Output watts 2000
- Continuous output capacity (watts) 2000
- Peak output capacity (watts) 4000
- Output nominal voltage 120V
- Output voltage regulation LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 120 VAC (+/-5%).
- Output frequency regulation 50 Hz (+/- 0.3 Hz)
- Overload protection Includes 15A input breaker dedicated to the charging system and 15A output breaker for AC output loads
- Outlet quantity / type Hardwire
- INPUT
- Nominal Input Voltage(s) Supported 120V AC
- Recommended Electrical Service DC INPUT: Requires 12VDC input source capable of delivering 120A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 400A minimum battery system fusing is recommended.
- Maximum input amps / watts DC INPUT: Full continuous load - 120A at 12VDC. AC INPUT: 17 amps at 120VAC with full inverter and charger load (8.7A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)
- Input connection type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate
- Voltage compatibility (VAC) 120
- Voltage compatibility (VDC) 12
- BATTERY
- Expandable battery runtime Runtime is expandable with any number of user supplied wet or gel type batteries
- DC system voltage (VDC) 12
- Battery Pack Accessory (optional) 98-121 sealed lead acid battery (optional)
- Battery recharge rate Selectable 8/80 amp
- VOLTAGE REGULATION
- Brownout correction Brownout transfer point - 170V (+/- 3%)
- Severe brownout correction Brownout reset point - 180V (+/- 3%)
- LEDS ALARMS & SWITCHES
- Alarms Audible Status indicators (see manual)
- Switches The inverter provides an RJ-45 port for optional APSRMSW retmote control. RJ-45 port operates with standard RS-485 interface (APSRMSW sold separately)
- Front panel LEDs Display inverter status, charger status as well as bettery voltage status
- PHYSICAL
- Cooling method Multi-speed fan
- Unit Dimensions (HWD/in) 20.4 x 8.8 x 7.2
- Unit weight (lbs) 51.16
- Material of construction Powder coated steel
- Receptacle Color Gray
- Style Heavy-duty with built-in battery charger
- Form factors supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
- ENVIRONMENTAL
- Relative Humidity 0-95% non-condensing
- Operating Elevation (ft) 0-1500 meters -20 - +40 degrees C 1501-3000 meters -20 - +35 degrees C
- LINE / BATTERY TRANSFER
- Transfer time from line power to battery mode 8-12 milliseconds
- Low voltage transfer to battery power In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual)
- High voltage transfer to battery power In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 259V (user adjustable to 264 - see manual)
- SPECIAL FEATURES
- Appearance gray color
- Load Sensing 150W ~ 220W
- Remote control capability Yes
- WARRANTY
- Product Warranty Period (U.S. & Canada) 2-year limited warranty
