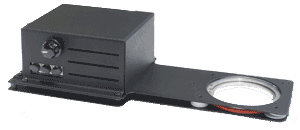

Apollo Design Technology SM-MOVE-JR-DMX
Smart Move® Jr DMX Rotator

OUR PART #:  SM-MOVE-JR-DMX

Apollo's Smart Move® Jr. rotator is the next generation in gobo moving effects technology.
Learn More
Our Price: $408.53
List Price: $470.00
You save 13%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Apollo Design Technology SM-MOVE-JR-DMX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Apollo's Smart Move® Jr. rotator is the next generation in gobo moving effects technology. In addition to simple multi-direction rotation, the Smart Move® by Apollo offers an array of individual gobo movements ideal for a broad range of applications without the need of a control board. The built-in, pre-programmed microprocessor provides the "smarts", while the rotary switches and speed control dial allow the user to easily set the desired effect and its speed. The Smart Move Jr DMX rotator provides all the features of the Smart Move Jr plus DMX control and indexing. Made in the U.S. and of U.S. imported components.

The Smart Move® Jr. DMX gobo rotator holds one "M" round gobo, secured by a heavy duty reversible retaining ring which is made of machined aluminum and is secured in place by two spring clips for easy adjustment and replacement. Belt driven for quiet operation while being powered by a rugged 24V power supply standard with the unit. The rotator's black, powder-coat 18 gauge steel provides rigidity and durability. Infinitely variable speed range from 0 to 21 rpm plus rotary switches for easy setting to desired effect. Safety cable not included.

Specifications:

  • Dimensions: 11.30" (l) x 4.70" (w) x 2.62" (d) ; 28.7cm x 11.94cm (w) x 6.65cm (d)
  • Gobo Size: 1 "M" round metal or glass
  • Drive System: Silent Drive Belt
  • Rotation Speeds: Infinitely variable cw/ccw, 0-21 rpm
  • Power Requirement: 24VDC + DMX 512 1990 Protocol (purchased separately)
  • Power Consumption: .4 amps @ 24VDC, 600mA
  • Data / Power Transmission: XLR 4-pin cable (purchased separately)
  • Power Cord Length: 6 ft. / 1.83m
  • Weight: 2.8lb ; 1.27kg
  • Retaining Ring: Reversible for metal or glass gobo
  • Effect Options: 19
  • Effect Settings: 3 rotary switches
  • Ratings: CE and FCC compliant
  • Packaging: Corrugated box (includes Apollo screwdriver)
  • Warranty: Items are covered for defects in materials and workmanship for one year, including repair parts and repair labor on defective item, from date of Apollo invoice.  The warranty covers freight for 30 days after initial purchase.  Apollo does not cover any other loss resulting from product failure.  Products being returned for warranty repair must display the original serial number sticker.  Removal of the serial number sticker voids the product's limited warranty.

Compatibility:

  • Compatible Fixtures: ETC Source Four Jr. and Selecon Acclaim (with optional adapter plate)
  • Power Supply Compatibility: Smart Power™ 75W, 200W, 400W or 600W, Color Q PSU 02-4, Spectra-Q PSU's, Chroma-Q PSU's, and Rainbow PSU's.
